435640-5 - TE Connectivity

435640-5 Details

• Manufacturer Part Number:

  435640-5

• Brand Name:

  Alcoswitch

• Part Life Cycle Code:

  Transferred

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Factory Lead Time:

  19 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  0.21

• Actuator Color:

  WHITE

• Actuator Length:

  0.05 inch

• Actuator Material:

  THERMOPLASTIC

• Actuator Type:

  TOP ROCKER

• Additional Feature:

  UNSEALED

• Body Breadth:

  9.65 mm

• Body Color:

  BLUE

• Body Height:

  8.64 mm

• Body Length or Diameter:

  22.35 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  0.015A@24VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(DC)-Max:

  40 V

• Dielectric Withstand Volts:

  500VDC V

• Electrical Life:

  2000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  GLASS FILLED POLYESTER

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYESTER

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  8

• Number of Switch Sections:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

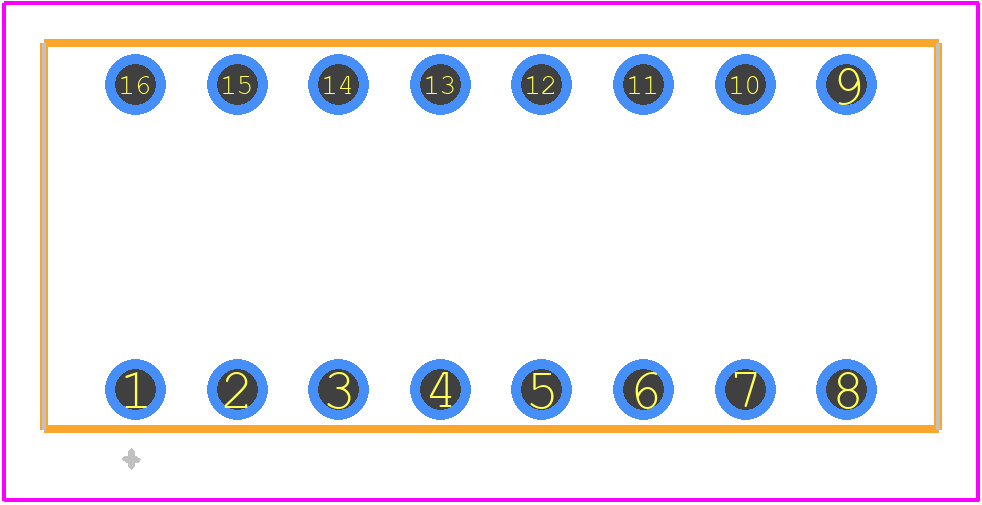

• PCB Hole Count:

  16

• Packing Method:

  BOX

• Sealing:

  BOTTOM SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Length:

  0.14 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  WIRE
