43650-0713 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 7 Circuits, with Solder Tab, Glow-Wire Capable, Black, Tape and Reel

Download 43650-0713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43650-0713 - Molex - PCB symbol
click to zoom
PCB Footprints

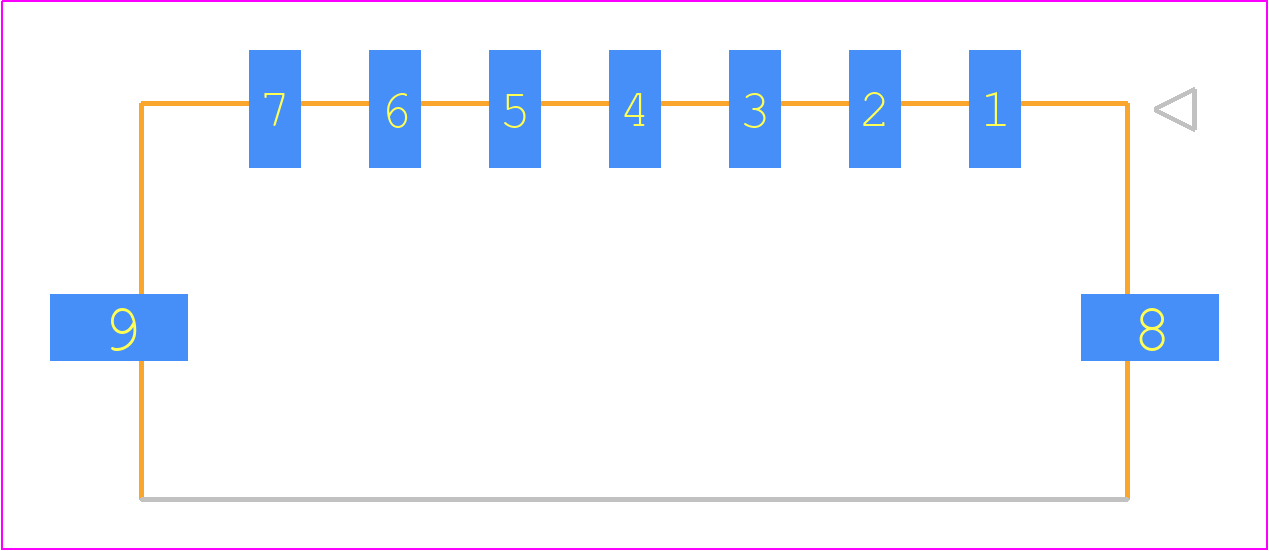

43650-0713 - Molex PCB footprint - Other - Other - 43650-07(12,13,14)
click to zoom
3D Models
43650-0713 - Molex - 3D model - Other - 43650-07(12,13,14)
click to zoom

43650-0713 Details

  • Manufacturer Part Number:

    43650-0713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.85

  • Body Breadth:

    0.219 inch

  • Body Depth:

    0.433 inch

  • Body Length:

    0.97 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43650-0713 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 43650-0713 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the connector is rated for outdoor use, with an operating temperature range of -40°C to 105°C (-40°F to 221°F) and a moisture rating of IP67.
  • The 43650-0713 connector is designed for wire sizes ranging from 24 AWG to 18 AWG.
  • Yes, the connector is suitable for use with stranded wire, but it's recommended to use a wire with a minimum strand count of 10.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43650-0713 Overview

Use the download button to access the 43650-0713 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43650, or try a keyword search, such as Power Connectors
