43650-1012 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 10 Circuits, with Solder Tab, Glow-Wire Capable, Black, Tape and Reel

Download 43650-1012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43650-1012 - Molex - PCB symbol
click to zoom
PCB Footprints

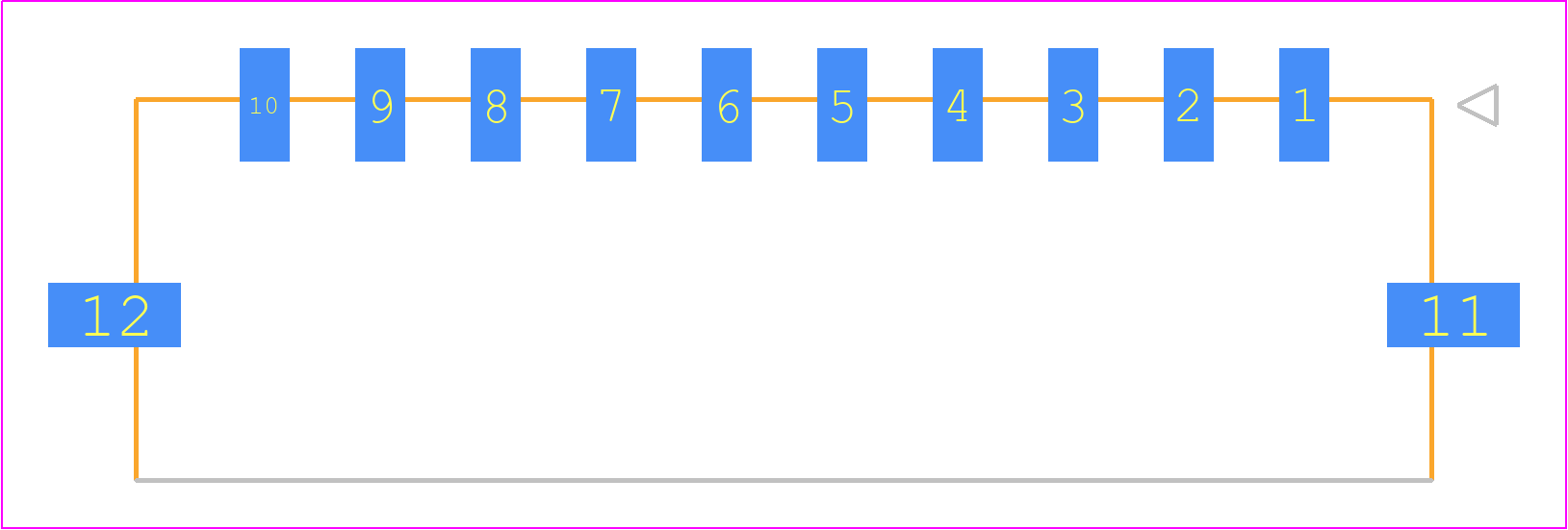

43650-1012 - Molex PCB footprint - Other - Other - 43650-10(12,13,14)
click to zoom
3D Models
43650-1012 - Molex - 3D model - Other - 43650-10(12,13,14)
click to zoom

43650-1012 Details

  • Manufacturer Part Number:

    43650-1012

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.85

  • Body Breadth:

    0.219 inch

  • Body Depth:

    0.433 inch

  • Body Length:

    1.325 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43650-1012 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 43650-1012 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 43650-1012 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 43650-1012 is designed to be used in outdoor environments and can withstand exposure to moisture and humidity.
  • No, the 43650-1012 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
