43650-1112 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 11 Circuits, with Solder Tab, Glow-Wire Capable, Black, Tape and Reel

Download 43650-1112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43650-1112 - Molex - PCB symbol
click to zoom
PCB Footprints

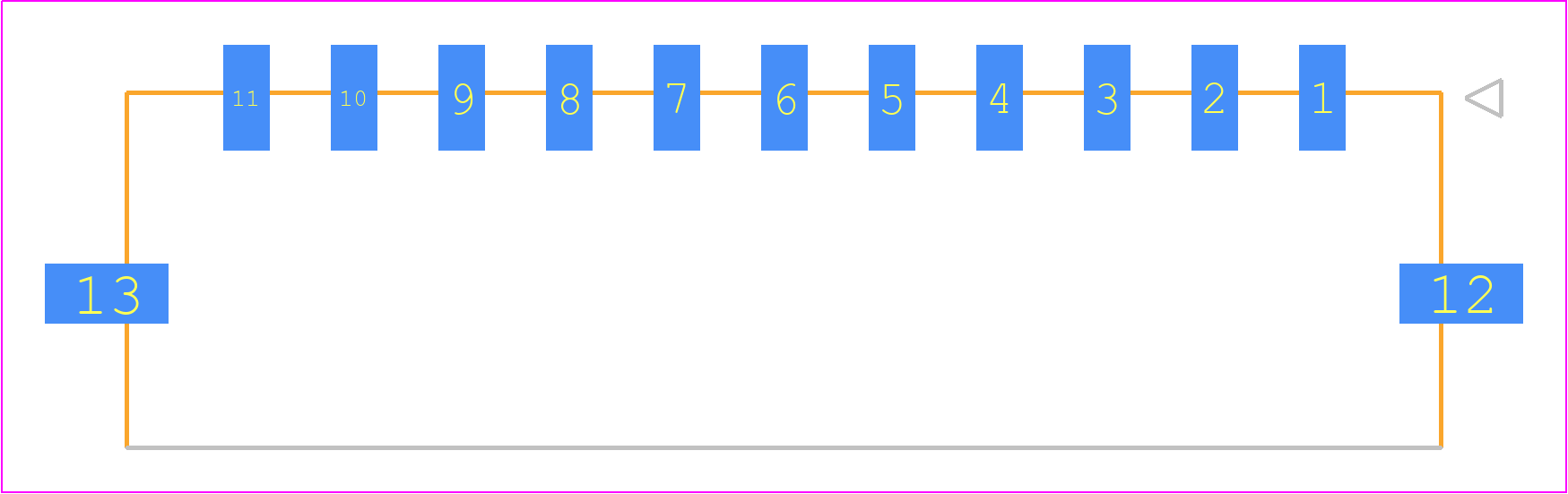

43650-1112 - Molex PCB footprint - Other - Other - 43650-11(12,13,14)
click to zoom
3D Models
43650-1112 - Molex - 3D model - Other - 43650-11(12,13,14)
click to zoom

43650-1112 Details

  • Manufacturer Part Number:

    43650-1112

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.85

  • Body Breadth:

    0.219 inch

  • Body Depth:

    0.433 inch

  • Body Length:

    1.443 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43650-1112 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 43650-1112 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range of the 43650-1112 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 43650-1112 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The mating cycle life of the 43650-1112 connector is 250 cycles minimum, making it suitable for applications that require frequent mating and unmating.
