43860-0025 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the Molex 438600025 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental applications?
  The Molex 438600025 connector has a IP67 rating, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's not designed for prolonged exposure to harsh environmental conditions. If you need a connector for outdoor or extreme environmental applications, consider using a connector with a higher IP rating or additional protection measures.
• Can I use this connector with wire sizes other than AWG 20-24?
  While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size and insulation diameter are compatible with the connector's terminal design to prevent damage or poor connections. Consult with a Molex representative or a qualified engineer for guidance on using alternative wire sizes.

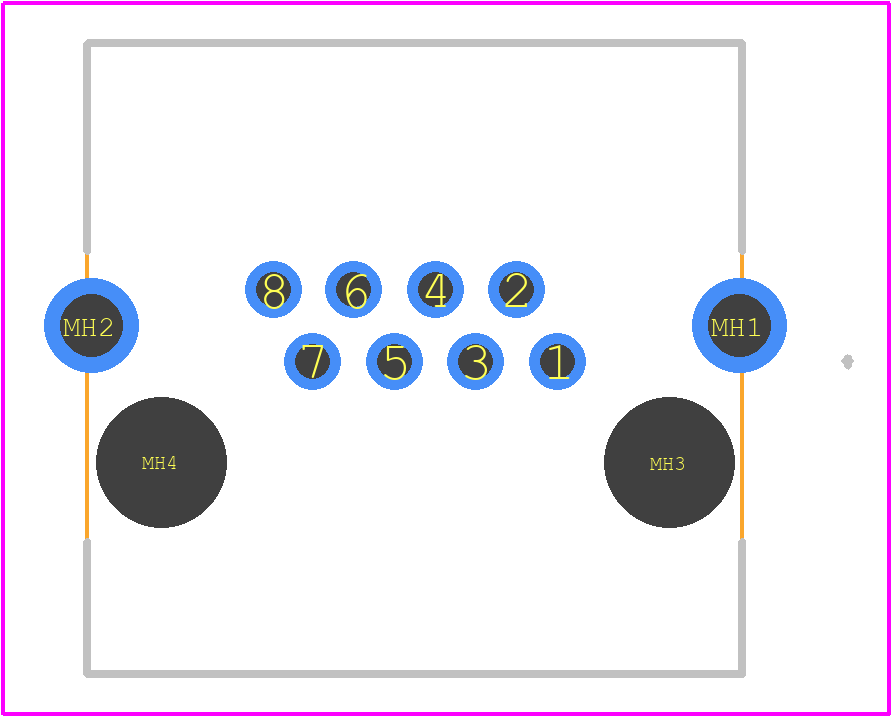

• Are there any specific PCB layout considerations for this connector?
  Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow these layout considerations: maintain a minimum clearance of 1.5 mm between the connector and adjacent components, ensure the PCB is thick enough to support the connector's screw terminals, and avoid placing components or traces under the connector's mounting area.
