Part Image

43860-5025 - Molex

Description: Modular Connectors / Ethernet Connectors Modjack RA LoPro 50AU Inv w/shield8/8

Download 43860-5025 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43860-5025 - Molex - PCB symbol
click to zoom

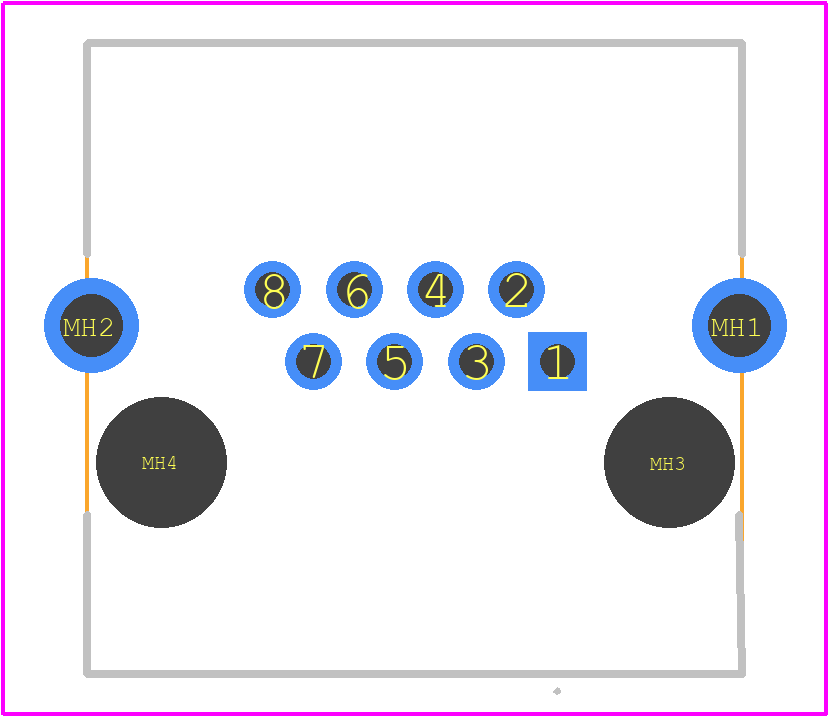

PCB Footprints
43860-5025 - Molex PCB footprint - Other - Other - 43860-5025-4
click to zoom
3D Models
43860-5025 - Molex - 3D model - Other - 43860-5025-4
click to zoom

43860-5025 Details

  • Manufacturer Part Number:

    43860-5025

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • Board Mounting Option:

    HOLE .125-.137

  • Body Breadth:

    0.533 inch

  • Body Depth:

    0.62 inch

  • Body Length:

    0.645 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • JESD-609 Code:

    e3

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.032 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

43860-5025 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 43860-5025 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 43860-5025 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand some environmental stress, but it's not designed for extreme outdoor or harsh environmental use.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with some limitations. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. It's recommended to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • The 43860-5025 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, and lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43860-5025 Overview

Use the download button to access the 43860-5025 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43860, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
