44056 - MYRRA

Description: Transformer PCB 1VA 2x9V 9 V ac 2 Output Through Hole PCB Transformer, 1VA

Download 44056 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

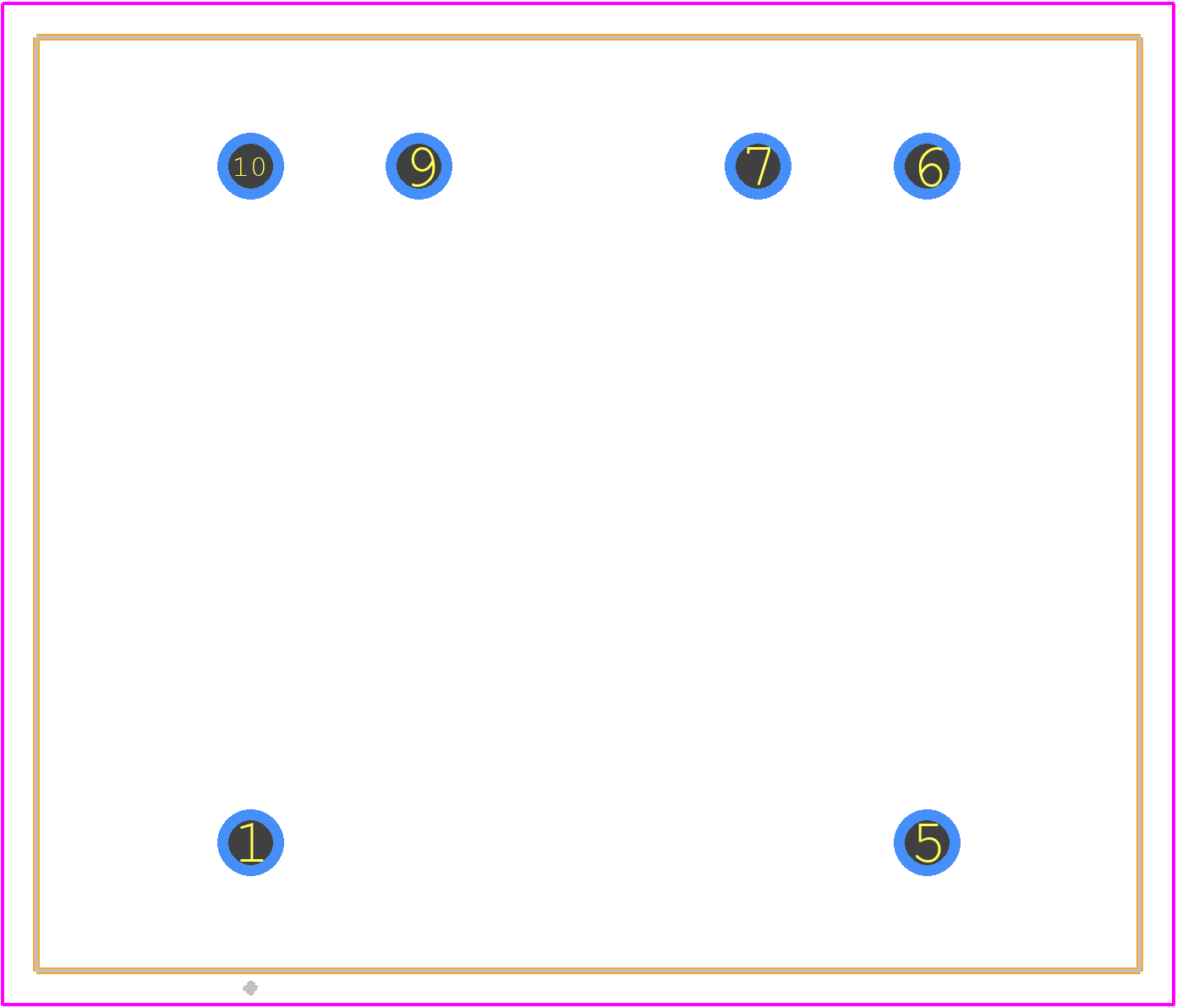

PCB Footprints
44056 - MYRRA PCB footprint - Other - Other - 44056-1
click to zoom
3D Models
44056 - MYRRA  - 3D model - Other - 44056-1
click to zoom

44056 Details

  • Manufacturer Part Number:

    44056

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    22.2 mm

  • Length:

    32.6 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    70 °C

  • Output Current 1:

    0.056 A

  • Output Voltage 1:

    9 V

  • Output Voltage 2:

    9 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1 VA

  • Width:

    27.6 mm
