44093 - MYRRA

Description: Transformer PCB 1.2VA 2x12V 12 V ac 2 Output Through Hole PCB Transformer, 1.5VA

Download 44093 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

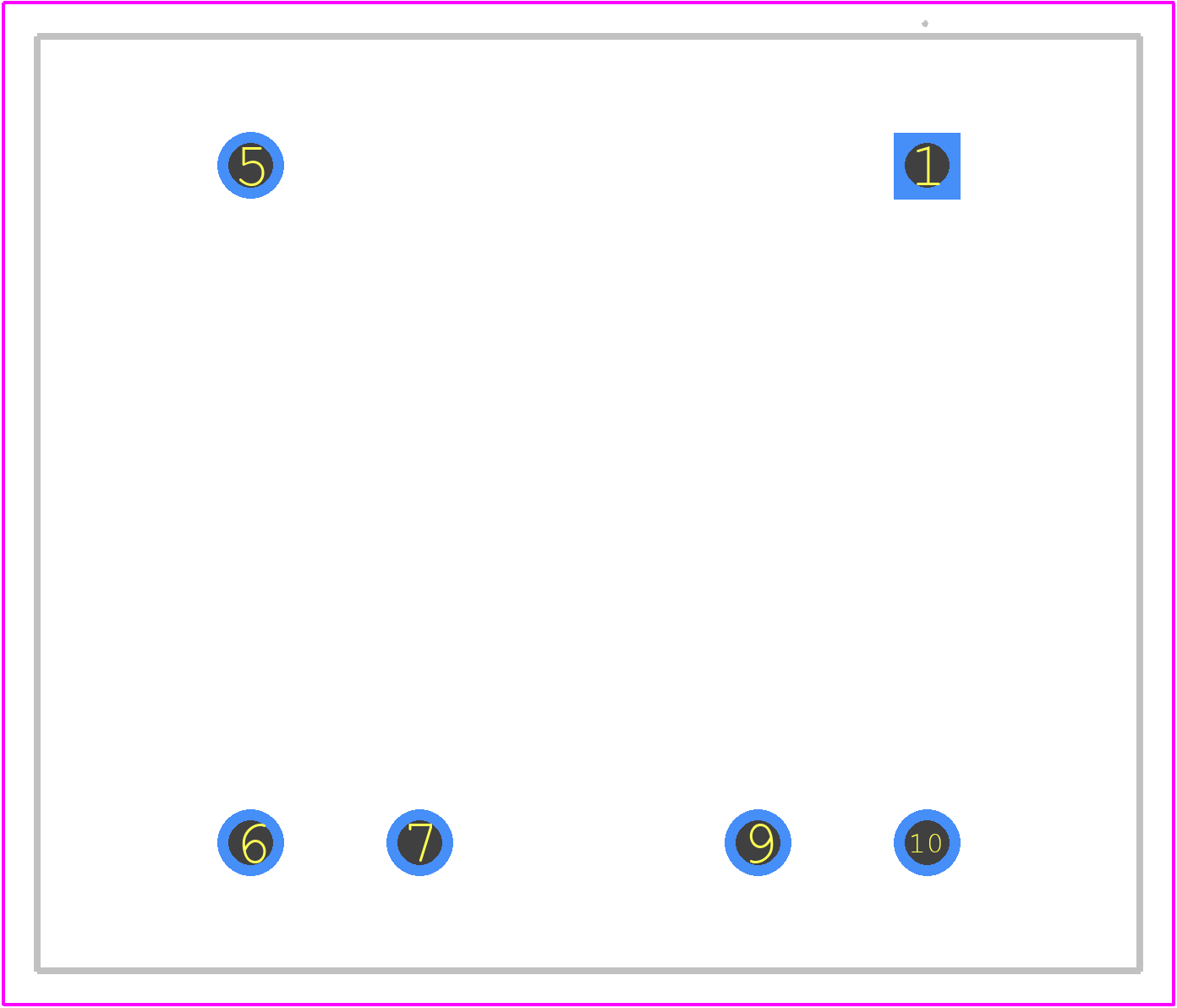

44093 - MYRRA PCB footprint - Other - Other - 44093-3
click to zoom
3D Models
44093 - MYRRA  - 3D model - Other - 44093-3
click to zoom

44093 Details

  • Manufacturer Part Number:

    44093

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    24.3 mm

  • Length:

    32.6 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    70 °C

  • Output Current 1:

    0.063 A

  • Output Voltage 1:

    12 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.5 VA

  • Width:

    27.6 mm

44093 Frequently Asked Questions (FAQs)

  • Myrra recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the recommended specifications. Also, use a pull-up resistor on the SDA line for I2C communication.
  • The 44093 can operate safely between -40°C to 125°C, but the optimal operating temperature range is between 0°C to 70°C for best performance and reliability.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input/output lines to protect the 44093 from electrostatic discharge. Also, follow proper handling and storage procedures to prevent ESD damage.
  • Power up the 44093 in the following sequence: VCC, then VDD, and finally the input signals. This ensures that the internal voltage regulators and analog circuits are properly initialized.
