44129 - MYRRA

Description: Transformer PCB 1.8VA 2x12V 12 V ac 2 Output Through Hole PCB Transformer, 2VA

Download 44129 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

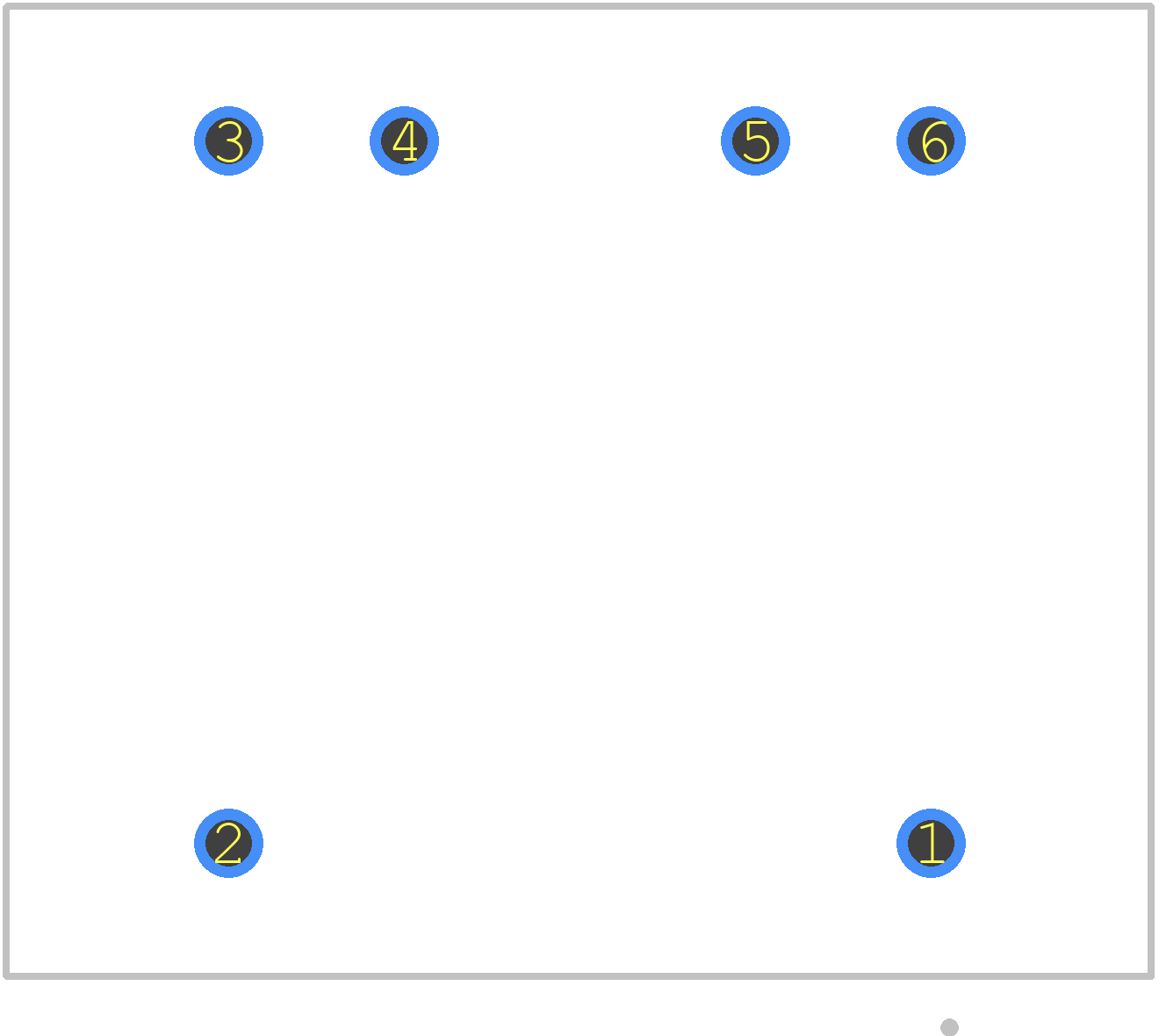

44129 - MYRRA PCB footprint - Other - Other - 44129
click to zoom
3D Models
44129 - MYRRA  - 3D model - Other - 44129
click to zoom

44129 Details

  • Manufacturer Part Number:

    44129

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    27.3 mm

  • Length:

    32.6 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    70 °C

  • Output Current 1:

    0.083 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    2 VA

  • Width:

    27.6 mm
