A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. Ensure a minimum of 1 oz copper thickness and a 1.5 mm via diameter for efficient heat dissipation.
To ensure reliable operation across the full temperature range, ensure proper thermal management, use a stable power supply, and follow the recommended operating conditions. Additionally, consider using a thermistor or thermocouple to monitor the device temperature.
Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potential device failure. It's essential to implement proper thermal management and monitoring to prevent overheating.
Yes, the 44158 is designed to withstand moderate vibration. However, it's essential to ensure the device is properly secured to the PCB and the PCB is securely fastened to the system to prevent damage or dislodging.
To troubleshoot issues with the 44158, start by verifying the power supply, checking for proper connections, and ensuring the device is operated within the recommended conditions. Use oscilloscopes or logic analyzers to debug signal issues, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
44158 Overview

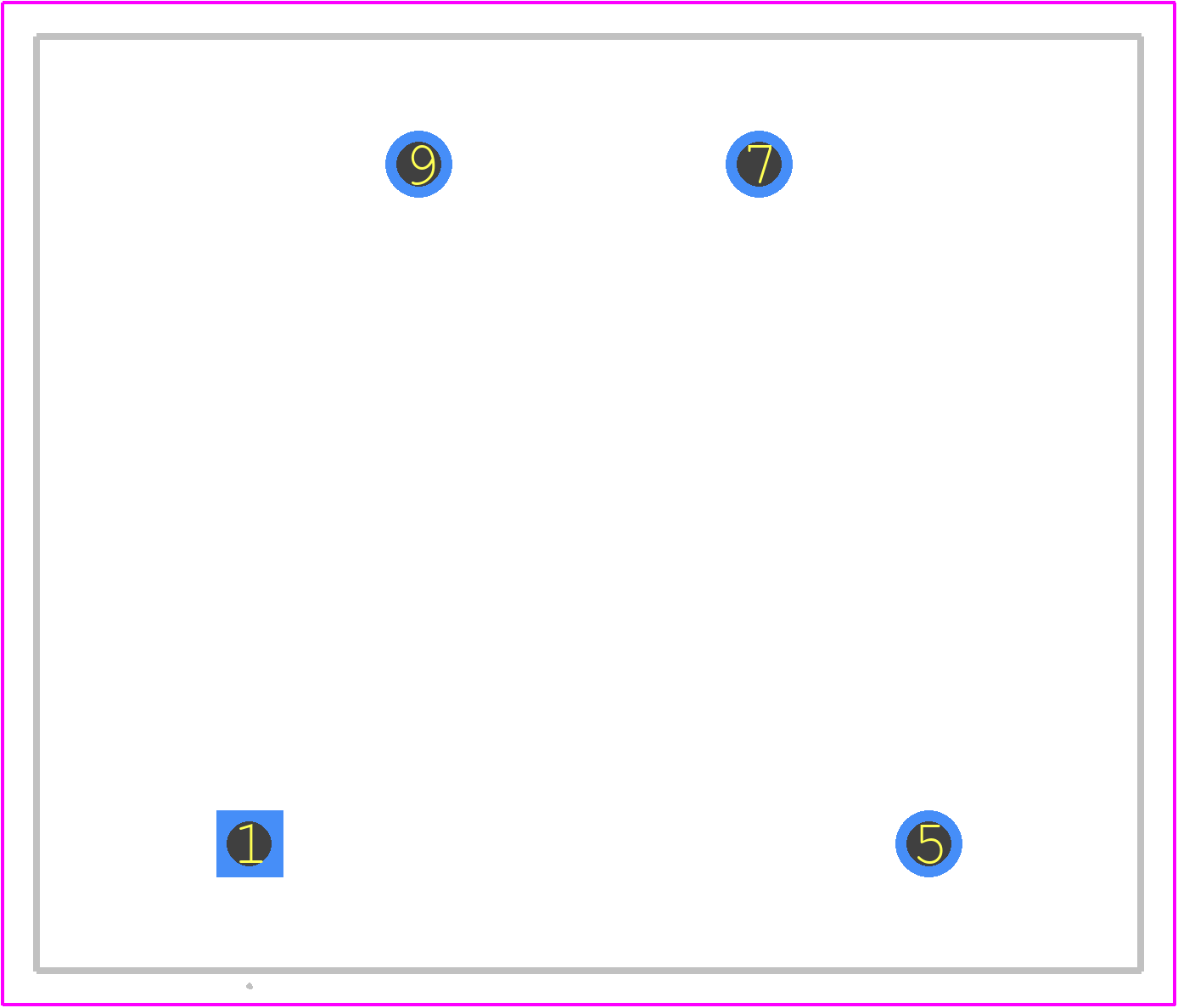

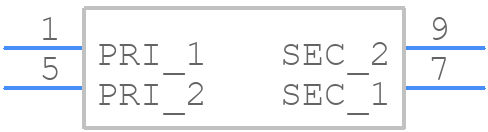

Use the download button to access the 44158 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Power/Mains Transformers
