Myrra recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation, Myrra recommends following the recommended operating conditions, including voltage, current, and temperature ranges. Additionally, proper thermal management, decoupling, and PCB design are crucial.
Although the datasheet specifies a maximum input voltage, Myrra recommends limiting the input voltage to 80% of the maximum rating to ensure reliable operation and prevent damage to the device.
Common issues include incorrect pin connections, insufficient power supply, or incorrect voltage levels. Verify the pin connections, power supply, and voltage levels according to the datasheet. If issues persist, contact Myrra support for further assistance.
While the 44164 is a high-quality device, Myrra recommends evaluating the device's performance and reliability in the specific application. Additional testing and validation may be required to ensure the device meets the necessary safety and reliability standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
44164 Overview

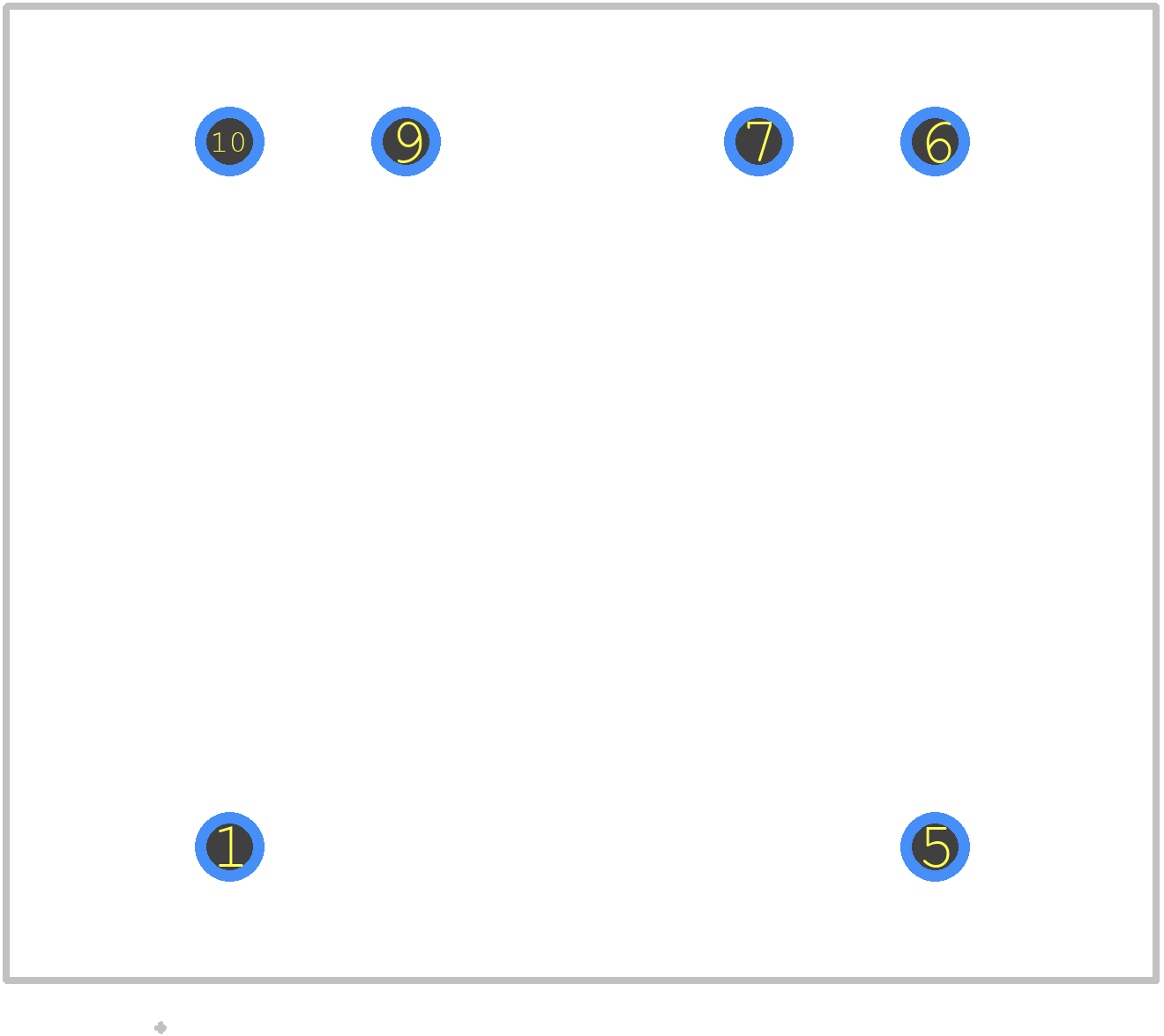

Use the download button to access the 44164 schematic symbol and PCB footprint.
