44193-0005 - Molex

Description: Molex 44193 Series 6 Way Right Angle Surface Mount Unshielded RJ11 Connector 5

Download 44193-0005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

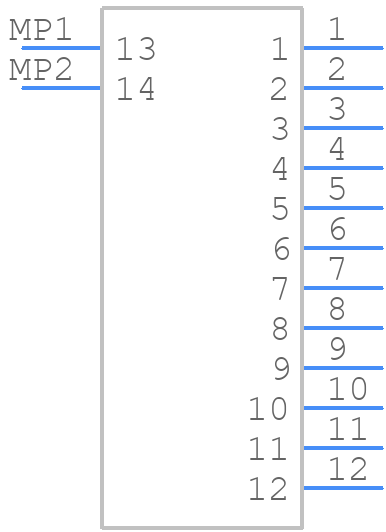

44193-0005 - Molex - PCB symbol
click to zoom
PCB Footprints
44193-0005 - Molex PCB footprint - Other - Other - 44193-0005-2
click to zoom
3D Models
44193-0005 - Molex - 3D model - Other - 44193-0005-2
click to zoom

44193-0005 Details

  • Manufacturer Part Number:

    44193-0005

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • Additional Feature:

    2 PORT, 6 POSITION EACH

  • Board Mounting Option:

    SOLDER HOLDING FLANGE

  • Body Breadth:

    0.465 inch

  • Body Depth:

    0.665 inch

  • Body Length:

    1.2 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    500 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    22.24 N

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED NYLON

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    FLUSH MOUNTING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    2

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    CSA, UL

  • Shell Material:

    GLASS FILLED POLYAMIDE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

44193-0005 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 44193-0005 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 44193-0005 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand moderate exposure to harsh environments, but it's not recommended for extreme conditions.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 44193-0005 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the connector's current rating. Consult with a Molex representative or a qualified engineer for guidance on using non-recommended wire sizes.
  • The 44193-0005 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44193-0005 Overview

Use the download button to access the 44193-0005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44193, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
