44198 - MYRRA

Description: TRANSFORMER 3.2VA 24V

Download 44198 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

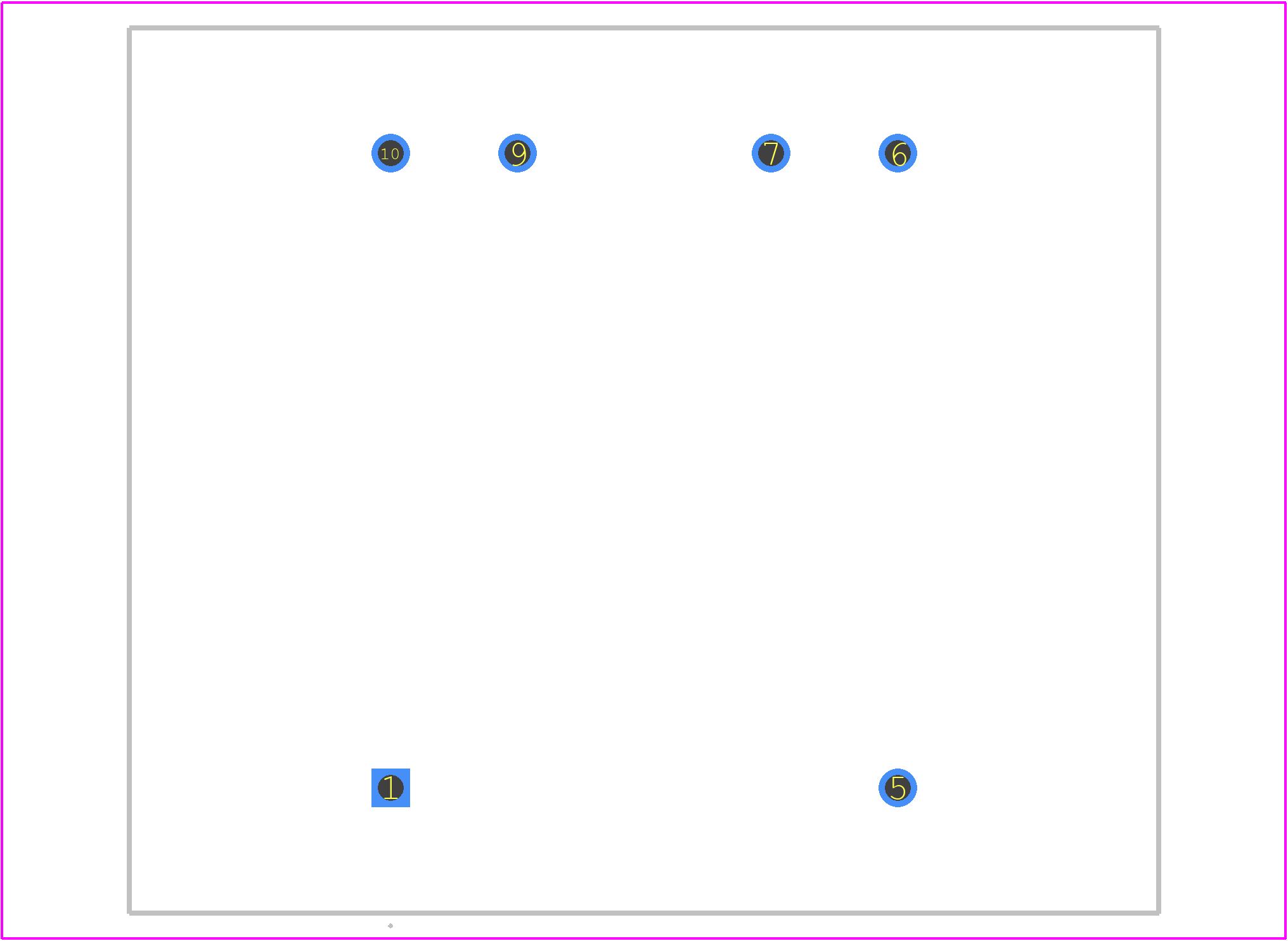

44198 - MYRRA PCB footprint - Other - Other - 44198-3
click to zoom
3D Models
44198 - MYRRA  - 3D model - Other - 44198-3
click to zoom

44198 Details

  • Manufacturer Part Number:

    44198

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    28 mm

  • Length:

    41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    70 °C

  • Output Current 1:

    0.133 A

  • Output Voltage 1:

    24 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    3.2 VA

  • Width:

    35 mm

44198 Frequently Asked Questions (FAQs)

  • Myrra recommends a 4-layer PCB with a solid ground plane and a separate power plane for the 44198. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SDA line for I2C communication.
  • The 44198 can operate safely between -40°C to 125°C, but the optimal operating temperature range is between 0°C to 85°C for maximum performance and reliability.
  • Use ESD protection diodes or TVS diodes on the input and output pins to protect the device from electrostatic discharge. Also, ensure that the PCB design includes a solid ground plane and a separate power plane for the 44198.
  • Power up the 44198 in the following sequence: VCC, then VDD, and finally the input signals. This ensures that the internal voltage regulators and bias circuits are properly initialized.
