Part Image

44204 - MYRRA

Description: 25 V ac 2 Output Through Hole PCB Transformer, 3.2VA

Download 44204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

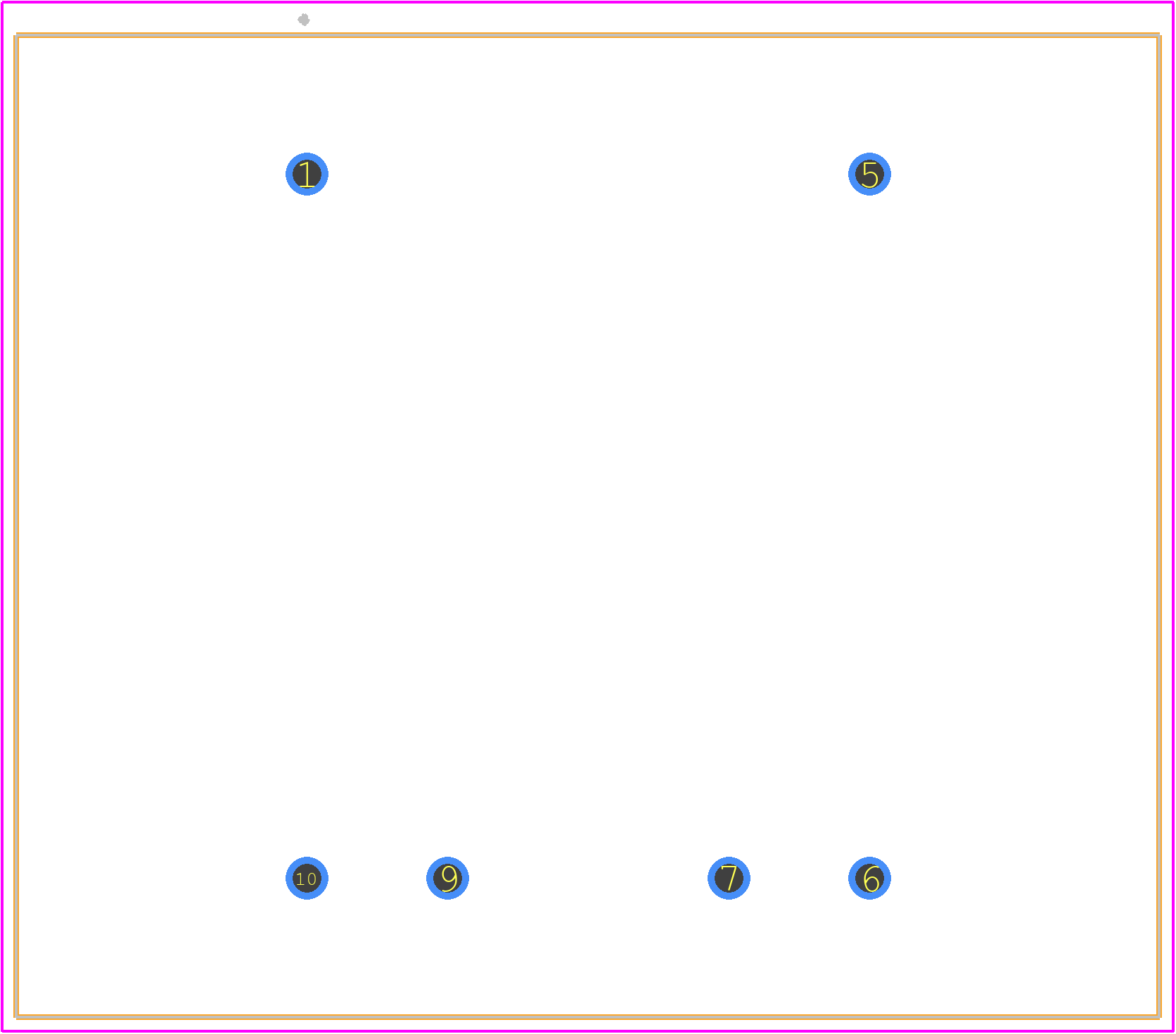

44204 - MYRRA PCB footprint - Other - Other - 44204-2
click to zoom
3D Models
44204 - MYRRA  - 3D model - Other - 44204-2
click to zoom

44204 Details

  • Manufacturer Part Number:

    44204

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Myrra

  • Approvals:

    EN

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    28 mm

  • Length:

    41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    70 °C

  • Output Current 1:

    0.067 A

  • Output Voltage 1:

    24 V

  • Primary Rating:

    SINGLE 230V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    3.2 VA

  • Width:

    35 mm

44204 Frequently Asked Questions (FAQs)

  • Myrra recommends a 4-layer PCB with a solid ground plane and a separate power plane for the 44204. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a thermally conductive material for the PCB and ensure good airflow around the device. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
  • Start by checking the power supply voltage, input signals, and output loads. Use an oscilloscope to verify the input and output waveforms. If issues persist, consult the datasheet and application notes or contact Myrra's technical support.
  • Yes, the 44204 is sensitive to electromagnetic interference. Use shielding, filtering, and grounding techniques to minimize EMI/EMC issues. Follow the recommended PCB layout and keep the device away from high-frequency sources.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44204 Overview

Use the download button to access the 44204 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Power/Mains Transformers
