44206-0005 - Molex

44206-0005 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 44206-0005 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environment applications?
  The 44206-0005 connector has a plastic housing with a moderate level of environmental protection. While it can be used in some outdoor applications, it's not recommended for extreme environmental conditions, such as high temperatures, high humidity, or exposure to chemicals. For harsh environment applications, consider using connectors with higher IP ratings or specialized environmental protection.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.

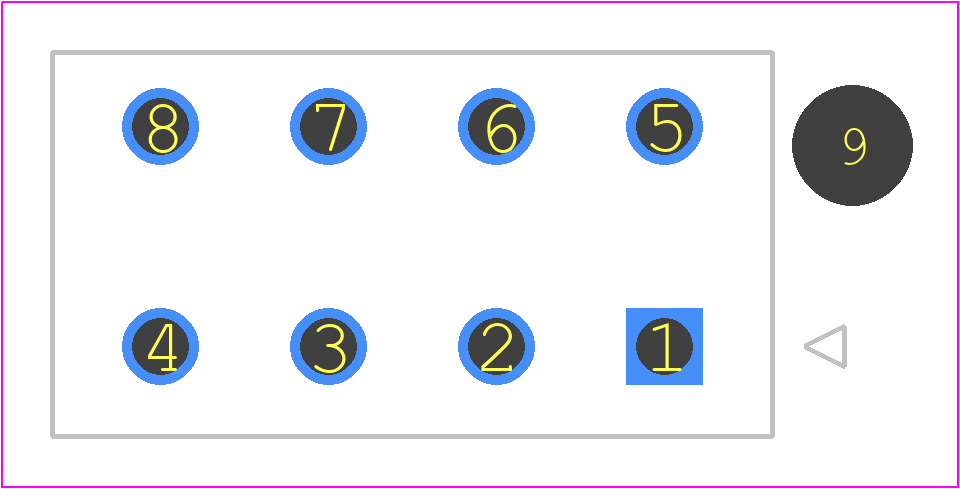

• Are there any specific PCB layout considerations for this connector?
  Yes, the 44206-0005 connector requires a specific PCB layout to ensure reliable connections and prevent damage. It's essential to follow Molex's recommended PCB layout guidelines, including the recommended pad size, spacing, and orientation, to ensure proper mating and unmating of the connector.
