44428-1007 - Molex

Description: Micro-Fit BMI Header, Surface Mount Compatible, Dual Row, Right-Angle, without Snap-in Plastic Peg PCB Lock, 10 Circuits

Download 44428-1007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44428-1007 - Molex - PCB symbol
click to zoom
PCB Footprints

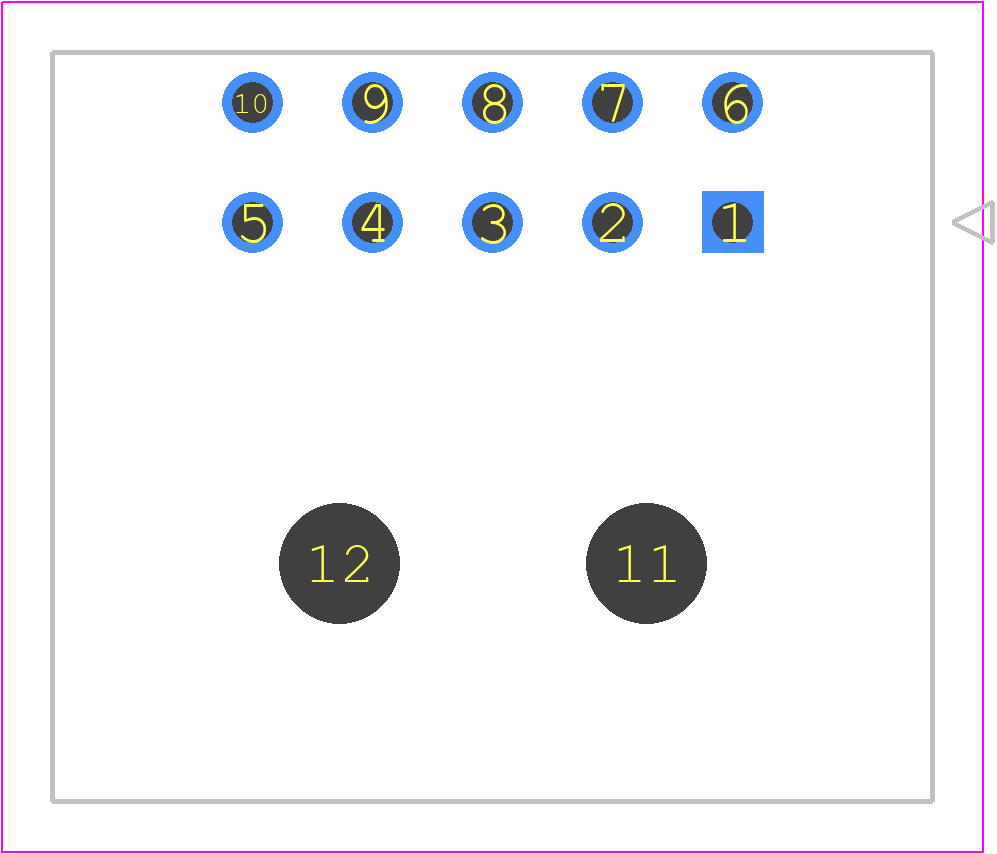

44428-1007 - Molex PCB footprint - Other - Other - 44428-10YY_WPEG
click to zoom
3D Models
44428-1007 - Molex - 3D model - Other - 44428-10YY_WPEG
click to zoom

44428-1007 Details

  • Manufacturer Part Number:

    44428-1007

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • JESD-609 Code:

    e3

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44428-1007 Overview

Use the download button to access the 44428-1007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44428, or try a keyword search, such as Power Connectors
