44428-1603 - Molex

Description: Micro-Fit BMI Header, Surface Mount Compatible, Dual Row, Right-Angle, without Snap-in Plastic Peg PCB Lock, 16 Circuits

Download 44428-1603 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44428-1603 - Molex - PCB symbol
click to zoom
PCB Footprints

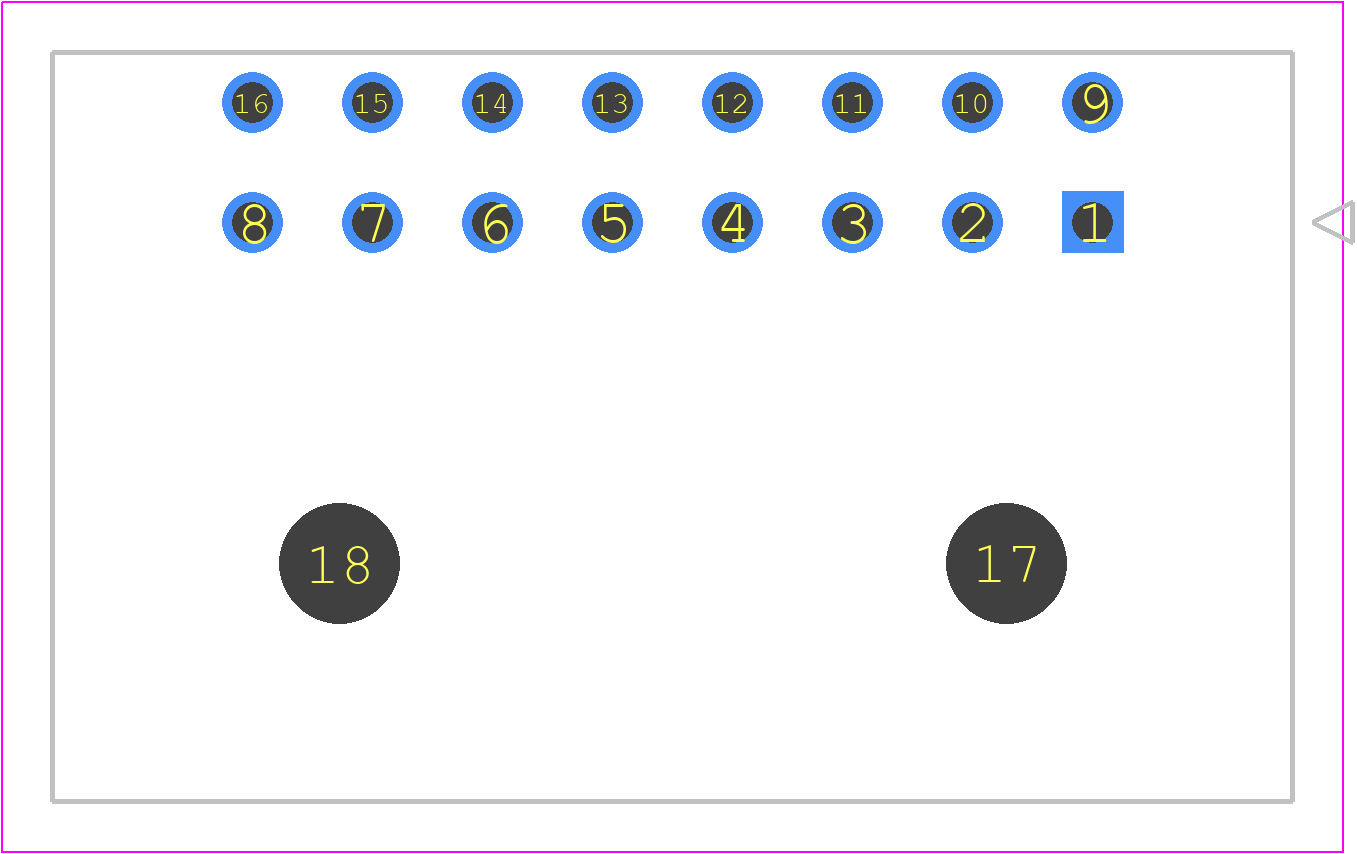

44428-1603 - Molex PCB footprint - Other - Other - 44428-16YY_WPEG
click to zoom
3D Models
44428-1603 - Molex - 3D model - Other - 44428-16YY_WPEG
click to zoom

44428-1603 Details

  • Manufacturer Part Number:

    44428-1603

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

44428-1603 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for high-vibration applications.
  • The operating temperature range of the 44428-1603 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The mating cycle life of the 44428-1603 connector is 500 cycles minimum.
