44428-2406 - Molex

Description: Micro-Fit BMI Header, Surface Mount Compatible, Dual Row, Right-Angle, without Snap-in Plastic Peg PCB Lock, 24 Circuits

Download 44428-2406 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44428-2406 - Molex - PCB symbol
click to zoom
PCB Footprints

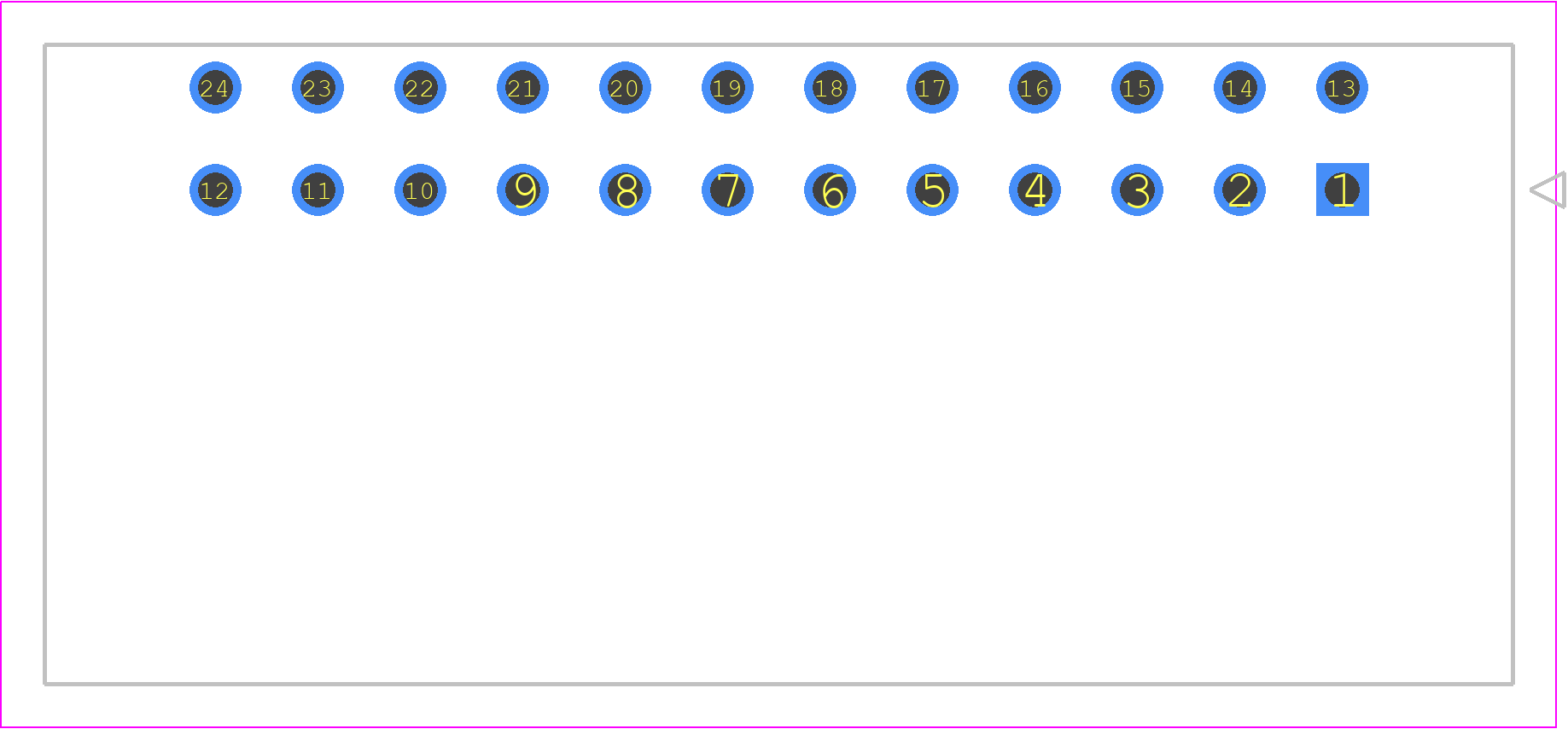

44428-2406 - Molex PCB footprint - Other - Other - 44428-24YY_NOPEG
click to zoom
3D Models
44428-2406 - Molex - 3D model - Other - 44428-24YY_NOPEG
click to zoom

44428-2406 Details

  • Manufacturer Part Number:

    44428-2406

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44428-2406 Overview

Use the download button to access the 44428-2406 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44428, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
