Part Image

44432-0601 - Molex

Description: Micro-Fit BMI Header, Dual Row, Vertical, with PCB Polarizing Peg, 4 Circuits, Kinked Tails

Download ECAD Model

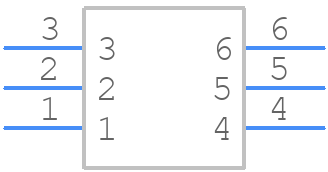

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

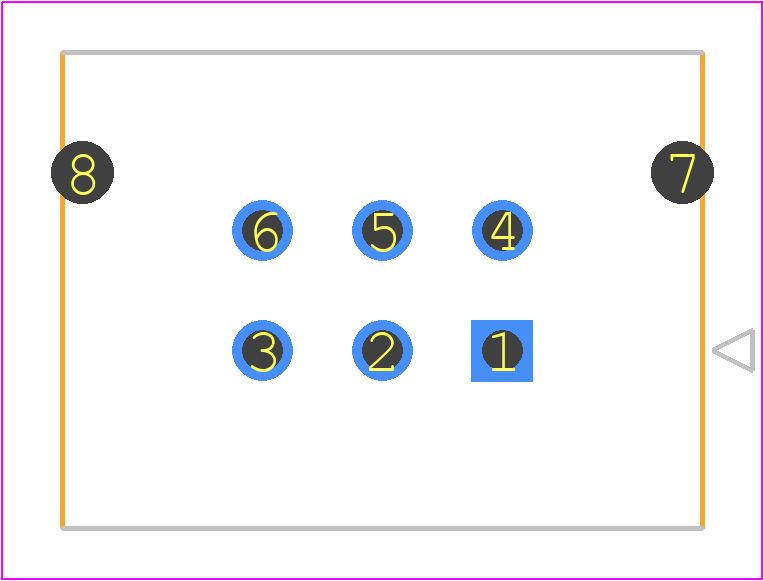

44432-0601 - Molex PCB footprint - Other - Other - 44432-06YY
click to zoom

3D Models

44432-0601 - Molex  - 3D model - Other - 44432-06YY
click to zoom

44432-0601 Details

  • Manufacturer Part Number:

    44432-0601

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    30 Weeks, 4 Days

  • Manufacturer:

    Molex

  • Risk Rank:

    1.36

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.469 inch

  • Body Depth:

    0.457 inch

  • Body Length:

    0.63 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    11.5648 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.118 inch

  • Mating Contact Row Spacing:

    0.118 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.9972 mm

  • Plating Thickness:

    200u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Headers and Edge Type Connectors

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    3.614 N

Risk Rank: Design Risk

44432-0601 — Molex
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Manufacturer Provided
System Verified
Community Approved
Sponsored

44432-0601 Overview

Use the download button to access the 44432-0601 schematic symbol, PCB footprint, and 3D model.
44432-0601 by Molex has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like 44432, or try a keyword search, such as Power Connectors

Parts related to 44432-0601

Showing 0 results

44432-0601 Alternates

Showing results

Image Part Number Design Risk Rank Model
Part Image HM4603E Foxconn

Board Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Black Insulator, Plug
