44432-0602 - Molex

Description: Micro-Fit BMI Header, Dual Row, Vertical, with PCB Polarizing Peg, 4 Circuits, Kinked Tails

Download 44432-0602 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44432-0602 - Molex - PCB symbol
click to zoom
PCB Footprints

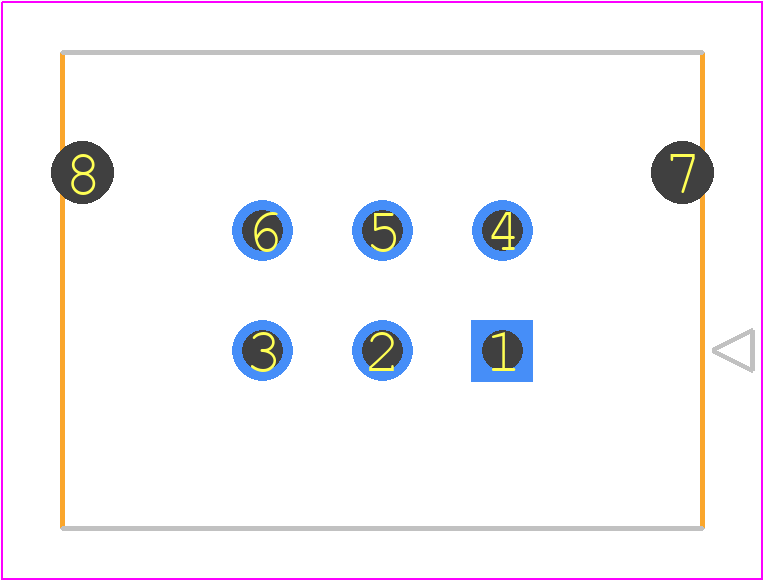

44432-0602 - Molex PCB footprint - Other - Other - 44432-06(01,02,03)
click to zoom
3D Models
44432-0602 - Molex - 3D model - Other - 44432-06(01,02,03)
click to zoom

44432-0602 Details

  • Manufacturer Part Number:

    44432-0602

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

44432-0602 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 44432-0602 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 44432-0602 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 44432-0602 is designed to be used in outdoor environments and can withstand exposure to moisture and humidity.
  • No, the 44432-0602 is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44432-0602 Overview

Use the download button to access the 44432-0602 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44432, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
