44472-0862 - Molex

Description: Mini-Fit HCS Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 8 Circuits

Download 44472-0862 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44472-0862 - Molex - PCB symbol
click to zoom
PCB Footprints

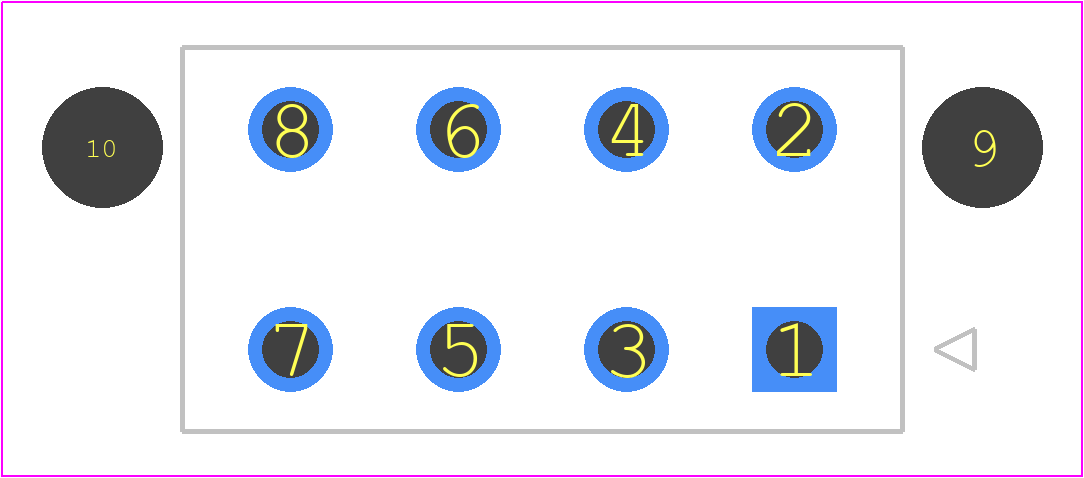

44472-0862 - Molex PCB footprint - Other - Other - 44472-08YY
click to zoom
3D Models
44472-0862 - Molex - 3D model - Other - 44472-08YY
click to zoom

44472-0862 Details

  • Manufacturer Part Number:

    44472-0862

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD (30)/MATTE TIN (100) OVER NICKEL

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4/e3

  • MIL Conformance:

    NO

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44472-0862 Overview

Use the download button to access the 44472-0862 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44472, or try a keyword search, such as Power Connectors
