Technical Content
Part Image

44472-1654 - Molex

Description: Mini-Fit HCS Header, 4.20mm Pitch, Dual Row, Vertical, without Snap-in Plastic Peg PCB Lock, 16 Circuits, PA Polyamide Nylon 6/6 94V-0

Download 44472-1654 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44472-1654 - Molex - PCB symbol
click to zoom

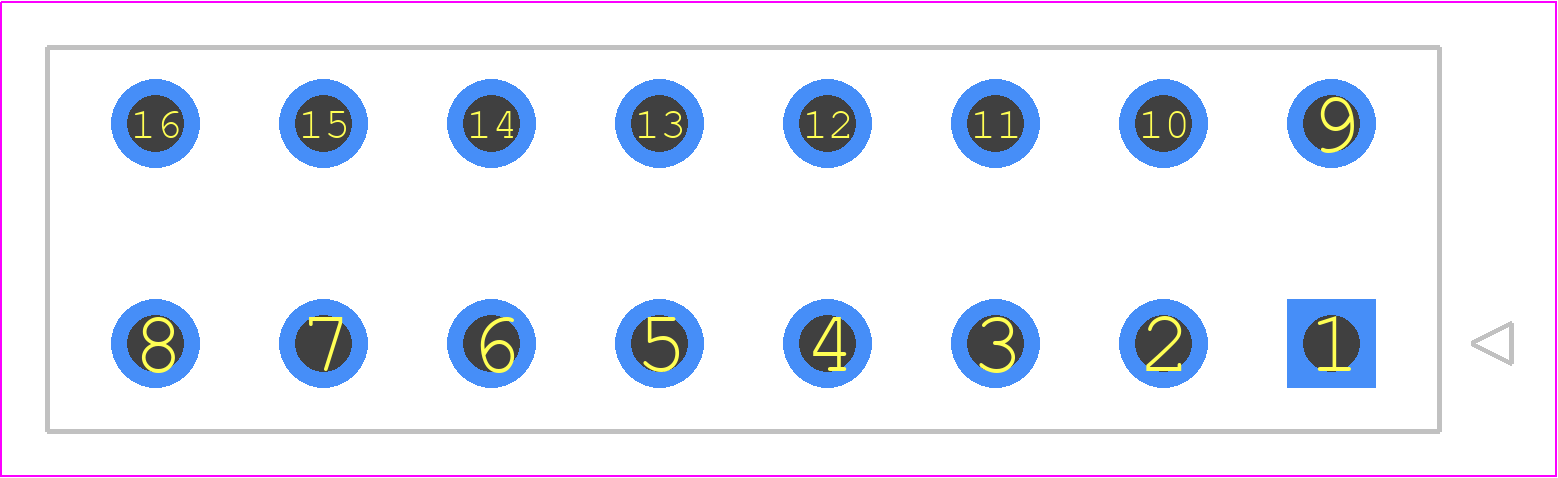

PCB Footprints
44472-1654 - Molex PCB footprint - Other - Other - 44472-16YY_2
click to zoom
3D Models
44472-1654 - Molex - 3D model - Other - 44472-16YY_2
click to zoom

44472-1654 Details

  • Manufacturer Part Number:

    44472-1654

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

44472-1654 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 N·m (4.4-13.3 in·lb).
  • Yes, the 44472-1654 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the connector is rated for outdoor use, with an operating temperature range of -40°C to 105°C (-40°F to 221°F) and a moisture rating of IP67.
  • The 44472-1654 connector is designed for wire sizes ranging from 24 AWG to 16 AWG.
  • Yes, the connector is suitable for use with stranded wire, but it's recommended to use a wire with a minimum strand count of 10.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44472-1654 Overview

Use the download button to access the 44472-1654 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44472, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
