44764-1602 - Molex

Description: Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, Selective, 16 Circuits

Download 44764-1602 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44764-1602 - Molex - PCB symbol
click to zoom
PCB Footprints

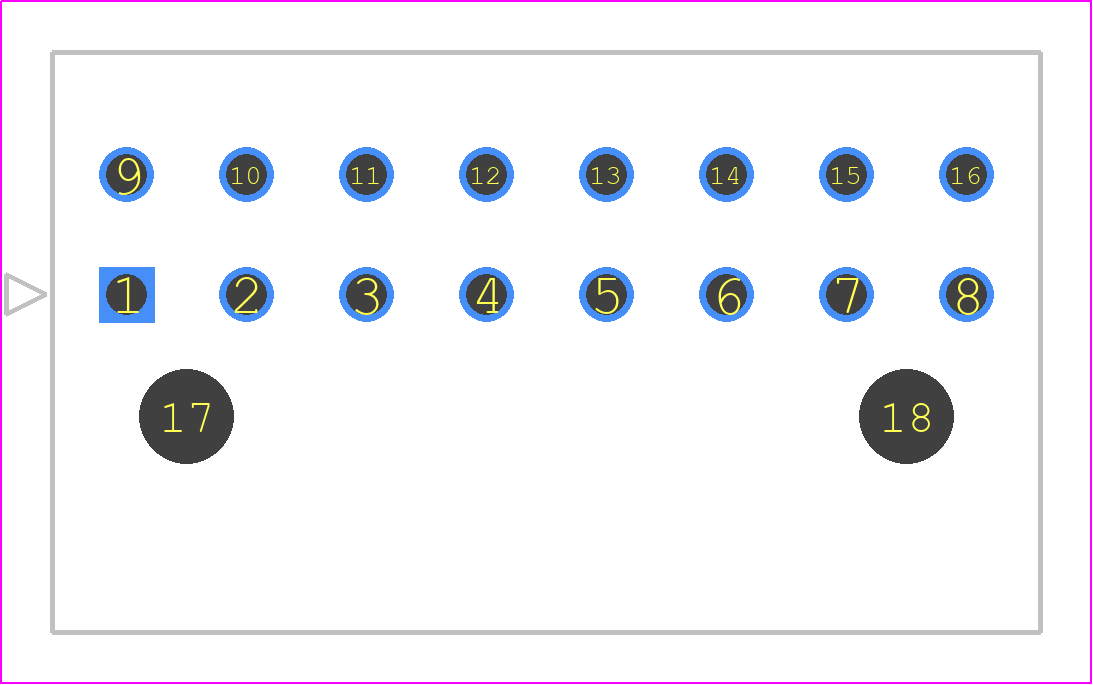

44764-1602 - Molex PCB footprint - Other - Other - 44764-16YY
click to zoom
3D Models
44764-1602 - Molex - 3D model - Other - 44764-16YY
click to zoom

44764-1602 Details

  • Manufacturer Part Number:

    44764-1602

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    TRAY PACKAGING

  • Body Breadth:

    0.4 inch

  • Body Length:

    0.972 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    8.0064 N

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA,TUV,UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

44764-1602 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks on the 44764-1602 connector.
  • Yes, the 44764-1602 connector is designed to withstand high-vibration environments, but it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • The maximum operating temperature for the 44764-1602 connector is 125°C (257°F), but it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • The 44764-1602 connector is designed to meet IP67 standards for ingress protection, but it's recommended to consult with a Molex representative for specific environmental requirements and to follow proper sealing and protection methods.
  • The recommended wire gauge for the 44764-1602 connector is 20-24 AWG (0.5-0.25 mm²), but it's recommended to consult with a Molex representative for specific wire gauge requirements based on application and current-carrying capacity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

44764-1602 Overview

Use the download button to access the 44764-1602 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 44764, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
