44764-1801 - Molex

44764-1801 Details

• Manufacturer Part Number:

  44764-1801

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Mainland China, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  15 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  PEG

• Body Breadth:

  0.411 inch

• Body Depth:

  0.827 inch

• Body Length:

  1.091 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Bright Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1400VAC V

• Durability:

  30 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  8.0064 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED NYLON

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.118 inch

• Mating Contact Row Spacing:

  0.118 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

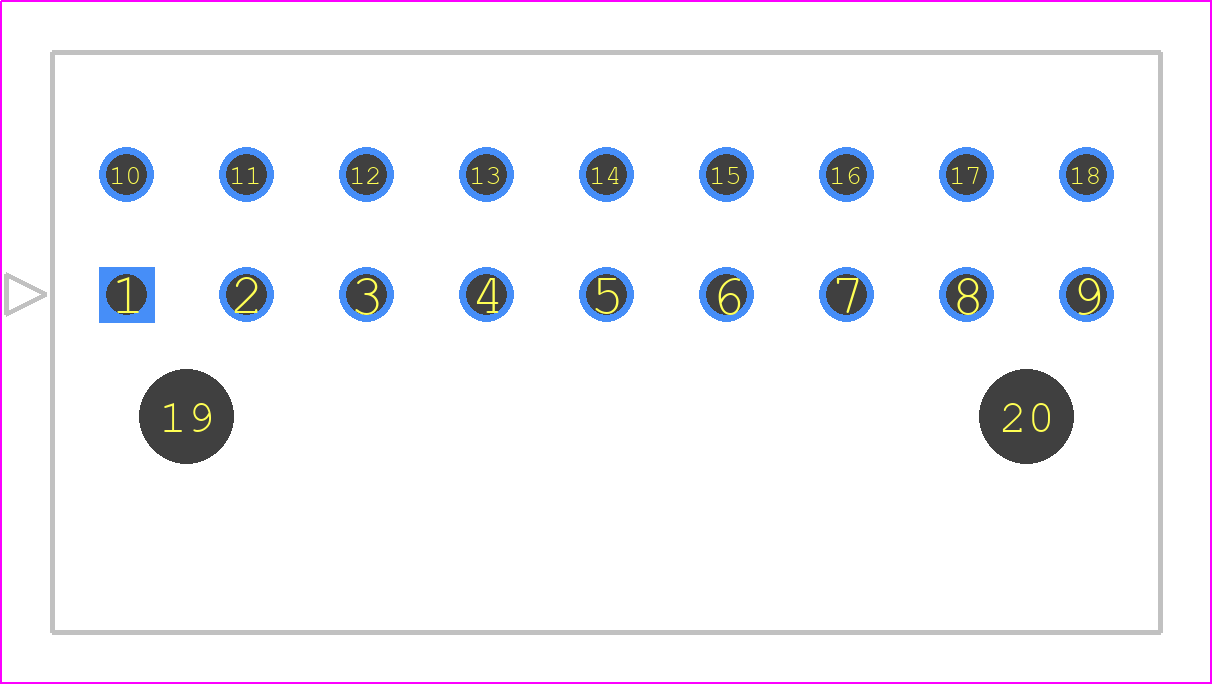

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.9972 mm

• Rated Current (Signal):

  5 A

• Reference Standard:

  CSA,TUV,UL

• Shell Material:

  GLASS FILLED POLYAMIDE

• Terminal Length:

  0.15 inch

• Terminal Pitch:

  2.9972 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  18

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.614 N
