44914-5802 - Molex

Description: Micro-Fit CPI Header, Compliant Pin Interface, Dual Row, Vertical, 8 Circuits

Download 44914-5802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
44914-5802 - Molex - PCB symbol
click to zoom
PCB Footprints

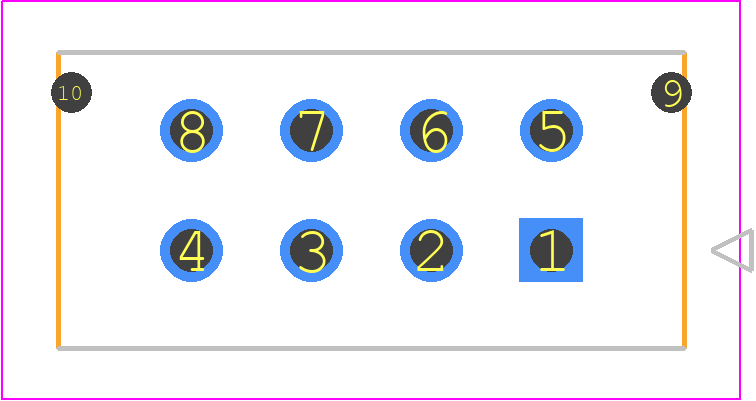

44914-5802 - Molex PCB footprint - Other - Other - 44914-5802
click to zoom
3D Models
44914-5802 - Molex - 3D model - Other - 44914-5802
click to zoom

44914-5802 Details

  • Manufacturer Part Number:

    44914-5802

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):8.5A

  • Body Breadth:

    0.346 inch

  • Body Depth:

    0.39 inch

  • Body Length:

    0.616 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

44914-5802 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 44914-5802 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 44914-5802 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 44914-5802 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult the datasheet and Molex's application notes for specific guidance.
  • While the 44914-5802 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. Consult Molex's application notes or contact their technical support for guidance.
