Myrra recommends a 4-layer PCB with a solid ground plane and a separate power plane for the 45002. Keep the signal traces short and away from the power plane to minimize noise and EMI.
Use a reliable communication protocol like SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, add capacitors to the power lines to filter out noise and ensure a stable power supply.
The 45002 can operate safely between -40°C to 85°C. However, it's recommended to keep the operating temperature between 0°C to 70°C for optimal performance and reliability.
Use ESD protection diodes or TVS diodes on the input/output lines to protect the 45002 from electrostatic discharge. Also, ensure that the PCB is designed with ESD protection in mind, such as using a ground plane and keeping sensitive components away from the edges.
Power up the 45002 in the following sequence: VCC, then VDD, and finally the input signals. This ensures that the internal voltage regulators and bias circuits are properly initialized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
45002 Overview

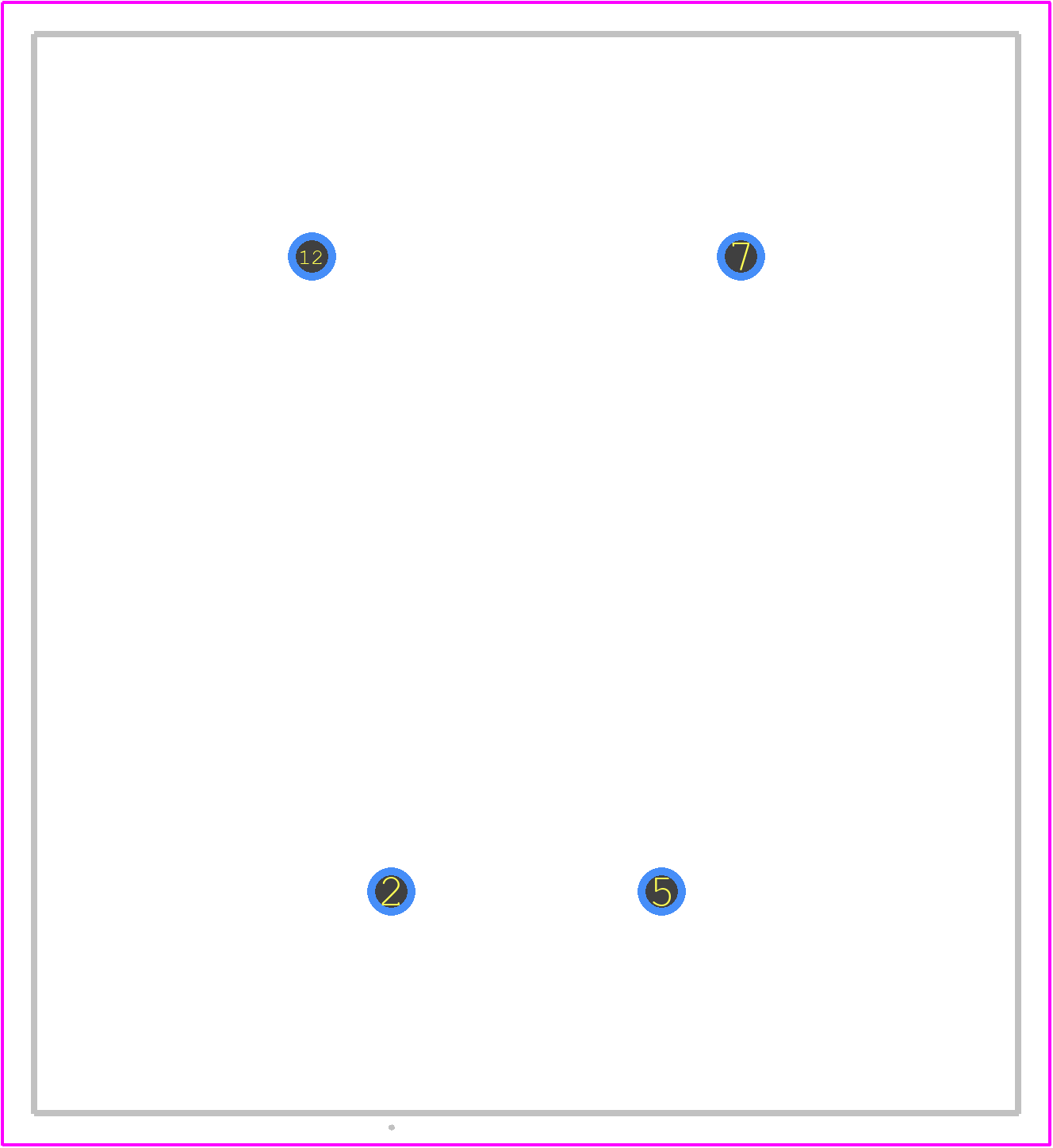

Use the download button to access the 45002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Power/Mains Transformers
