4515DO-DS3BK002DPL - TE Connectivity

Description: Dimensions: Dimensions 12.5 x 9.9 MM | Dimensions .49 x .39 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 3.3 V | Operation/Application: Output/Span 14 bit ADC | Pressure 2 INH2O | Board Level Pressure Sensor Accuracy ±0.25% Span | Pressure 300 PSI | Other: Sensor Options Low Power | Packaging Features: Board Level Pressure Sensor Package 8 pin DIL | Product Type Features: Board Level Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Board Level Pressure S

Download 4515DO-DS3BK002DPL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

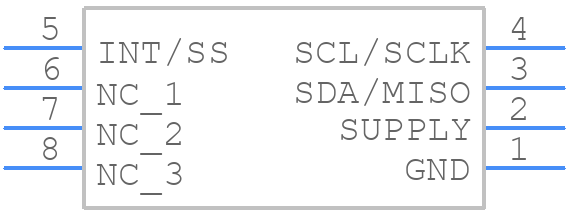

4515DO-DS3BK002DPL - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

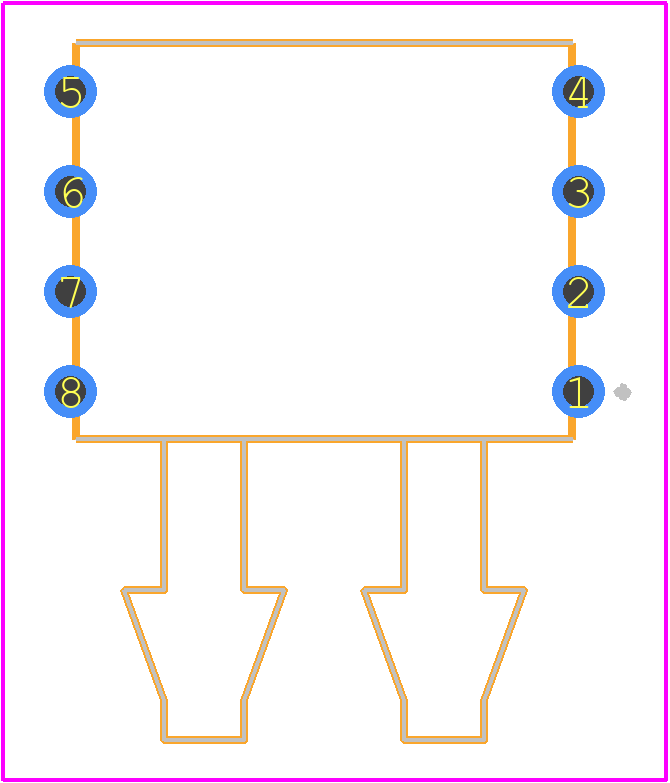

4515DO-DS3BK002DPL - TE Connectivity PCB footprint - Other - Other - 8-DIP Module
