4525-SS5A001GP footprint, schematic symbol and 3D model by TE Connectivity

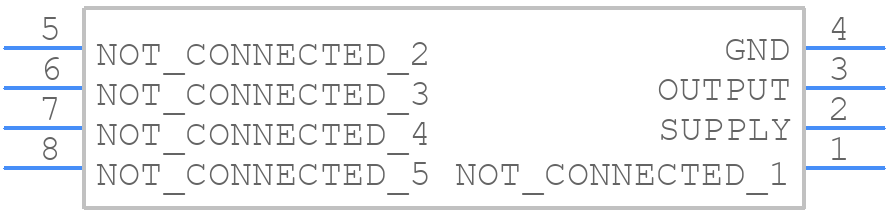

Symbol

click to zoom

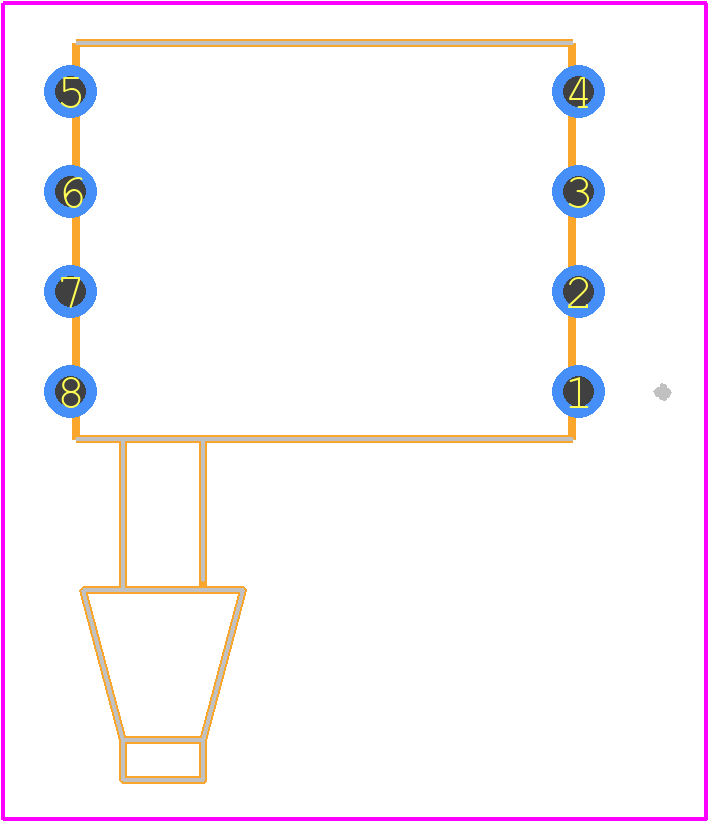

PCB Footprints

4525-SS5A001GP - TE Connectivity PCB footprint - Other - Other - 4525-SS5A001GP-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4525-SS5A001GP
Part Number 4525-SS5A001GP
Manufacturer TE Connectivity
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 4525-SS5A001GP-3
Released Date Feb 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

4525-SS5A001GP Details

Manufacturer Part Number:
4525-SS5A001GP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE - 8
Factory Lead Time:
8 Weeks
Manufacturer:
TE Connectivity
Accuracy-Max (%):
0.25%
Additional Feature:
PORT HEIGHT = 7.5 MM, DIAMETER = 3.5 MM
Body Breadth:
9.9 mm
Body Height:
4.1 mm
Body Length or Diameter:
12.4 mm
Housing:
CERAMIC
Mounting Feature:
THROUGH HOLE MOUNT
Operating Current-Max:
3 mA
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-25 °C
Output Range:
0.5-4.5V
Output Type:
ANALOG VOLTAGE
Package Shape/Style:
RECTANGULAR
Port Type:
BARBED
Pressure Range-Max:
20 Psi
Pressure Sensing Mode:
GAGE
Response Time:
1000 µs
Sensors/Transducers Type:
PRESSURE SENSOR,PIEZORESISTIVE
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.7 V
Surface Mount:
NO
Termination Type:
SOLDER

4525-SS5A001GP Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in). It's essential to follow this range to ensure reliable connections and prevent damage to the terminals.
Yes, the 4525-SS5A001GP connector is designed to withstand vibrations up to 10 G (98 m/s²) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 4525-SS5A001GP connector has a rating of IP67, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. It's also designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to follow proper sealing and installation guidelines to ensure the connector's performance in harsh environments.
The 4525-SS5A001GP connector is designed to accommodate wire sizes ranging from 24 AWG to 16 AWG (0.25 mm² to 1.5 mm²). Using wires outside this range may compromise the connector's performance and reliability.
The 4525-SS5A001GP connector is rated for a maximum current of 3 A per contact. Exceeding this rating may cause overheating, damage, or even failure. It's essential to ensure that the connector is used within its specified current rating to maintain reliability and safety.
