4525DO-DS5AI001DP - TE Connectivity

Description: Differential Pressure Sensor 1PSI Dual Barbs

Download 4525DO-DS5AI001DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

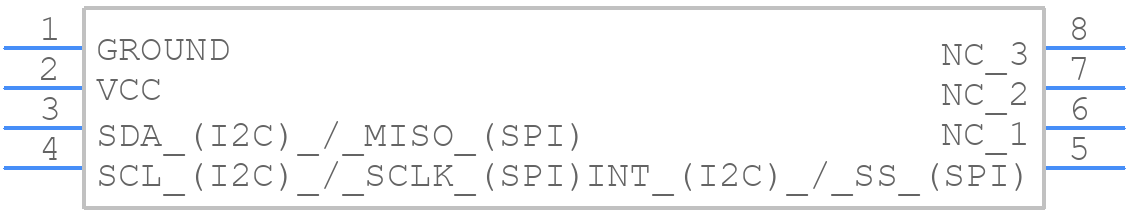

Symbol
4525DO-DS5AI001DP - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
4525DO-DS5AI001DP - TE Connectivity PCB footprint - Other - Other - 4525DO-DS...P
click to zoom
3D Models
4525DO-DS5AI001DP - TE Connectivity - 3D model - Other - 4525DO-DS...P
click to zoom

4525DO-DS5AI001DP Details

  • Manufacturer Part Number:

    4525DO-DS5AI001DP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • Factory Lead Time:

    9 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Accuracy-Max (%):

    0.25%

  • Additional Feature:

    Port Diameter = 3.5 MM

  • Body Breadth:

    12.4 mm

  • Body Height:

    7.2 mm

  • Body Length or Diameter:

    17.4 mm

  • Housing:

    CERAMIC

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Bits:

    14

  • Operating Current-Max:

    3 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Range-Max:

    300 Psi

  • Pressure Range-Min:

    -1 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

4525DO-DS5AI001DP Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, but it's recommended to consult the TE Connectivity application note for specific guidance.
  • Yes, the 4525DO-DS5AI001DP is designed to withstand vibrations and is suitable for use in harsh environments, but it's recommended to consult TE Connectivity's vibration testing data for specific information.
  • The maximum operating temperature for the 4525DO-DS5AI001DP is 125°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the 4525DO-DS5AI001DP is designed to operate in humid environments, but it's recommended to consult TE Connectivity's environmental testing data for specific information on humidity and moisture resistance.
  • The mating cycle life of the 4525DO-DS5AI001DP is 500 cycles minimum, but it's recommended to consult the datasheet for specific information on mating cycle life and testing conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4525DO-DS5AI001DP Overview

Use the download button to access the 4525DO-DS5AI001DP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4525D, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
