4525DO-SS5AI100GP - TE Connectivity

Description: Configuration Features: Leads/Pins Through Hole | Dimensions: Dimensions .49 x .39 INCH | Dimensions 12.5 x 9.9 MM | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 5 V | Supply Current 3 MAMP | Operation/Application: Output Interface I²C or SPI | Proof Pressure Range 300 psi | Board Level Pressure Sensor Accuracy ±0.25% Span | Interface Type I2C (Addr.0x28H) | Pressure 100 PSI | Output/Span 14 bit ADC | Other: Sensor Options No Option | Packaging Features: Package Style Single Side

Download 4525DO-SS5AI100GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

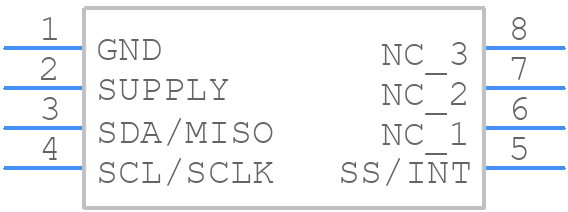

4525DO-SS5AI100GP - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
4525DO-SS5AI100GP - TE Connectivity PCB footprint - Other - Other - 4525DO-SS5AI100GP-2
click to zoom
3D Models
4525DO-SS5AI100GP - TE Connectivity - 3D model - Other - 4525DO-SS5AI100GP-2
click to zoom

4525DO-SS5AI100GP Details

  • Manufacturer Part Number:

    4525DO-SS5AI100GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • Factory Lead Time:

    16 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Accuracy-Max (%):

    0.25%

  • Additional Feature:

    Port Diameter = 3.5 MM

  • Body Breadth:

    12.4 mm

  • Body Height:

    4.1 mm

  • Body Length or Diameter:

    17.4 mm

  • Housing:

    CERAMIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    14

  • Operating Current-Max:

    3 mA

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Range-Max:

    100 Psi

  • Pressure Sensing Mode:

    GAUGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

4525DO-SS5AI100GP Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-0.8 Nm (4.4-7.4 in-lbs).
  • Yes, the 4525DO-SS5AI100GP is designed to withstand high-vibration environments and meets the IEC 61373 Category 1, Class B standard for vibration resistance.
  • Yes, the 4525DO-SS5AI100GP is suitable for outdoor applications due to its IP67 rating, which provides protection against dust and water ingress.
  • The maximum operating temperature range for the 4525DO-SS5AI100GP is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 4525DO-SS5AI100GP is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.
