45280-2001 - Molex

45280-2001 Details

• Manufacturer Part Number:

  45280-2001

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  6.75

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  HOLE .055-.063

• Body Breadth:

  0.469 inch

• Body Depth:

  0.457 inch

• Body Length:

  1.457 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  8.0064 N

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED NYLON

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.118 inch

• Mating Contact Row Spacing:

  0.118 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

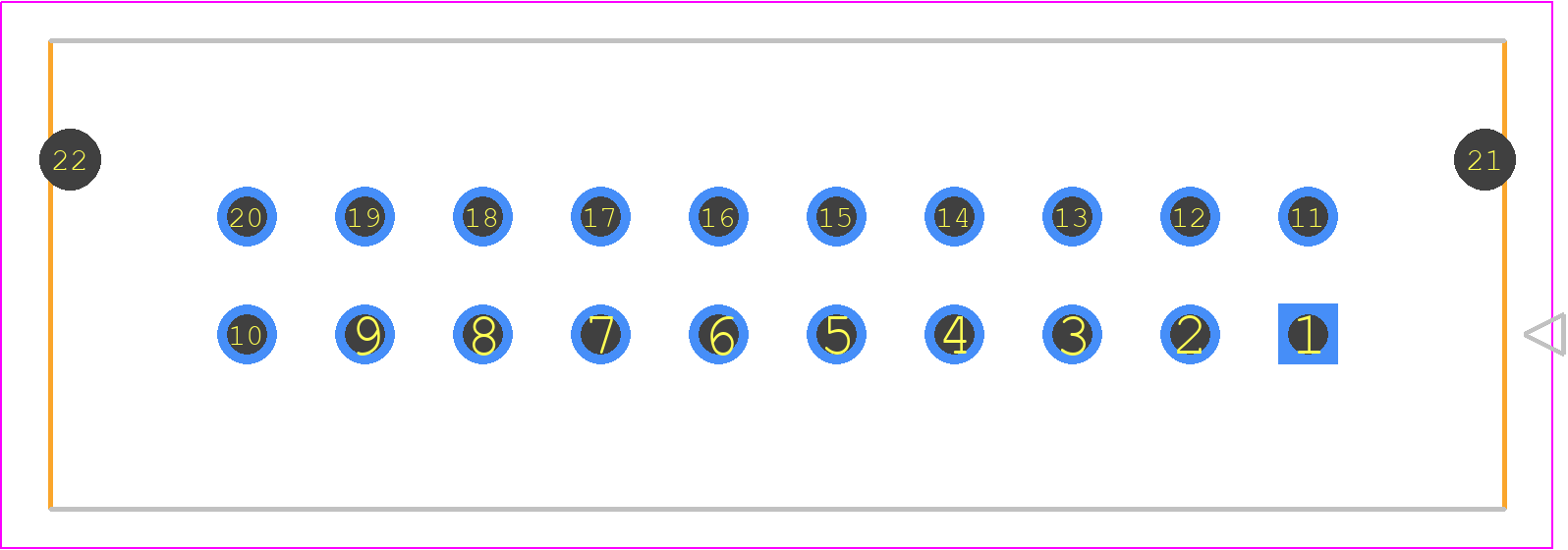

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.9972 mm

• Plating Thickness:

  200u inch

• Reference Standard:

  UL

• Shell Material:

  POLYMER

• Terminal Length:

  0.19 inch

• Terminal Pitch:

  2.9972 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
