453-00047R - EZURIO

Description: Bluetooth, WiFi 802.11ac, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Trace Pin Surface Mount

Download 453-00047R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

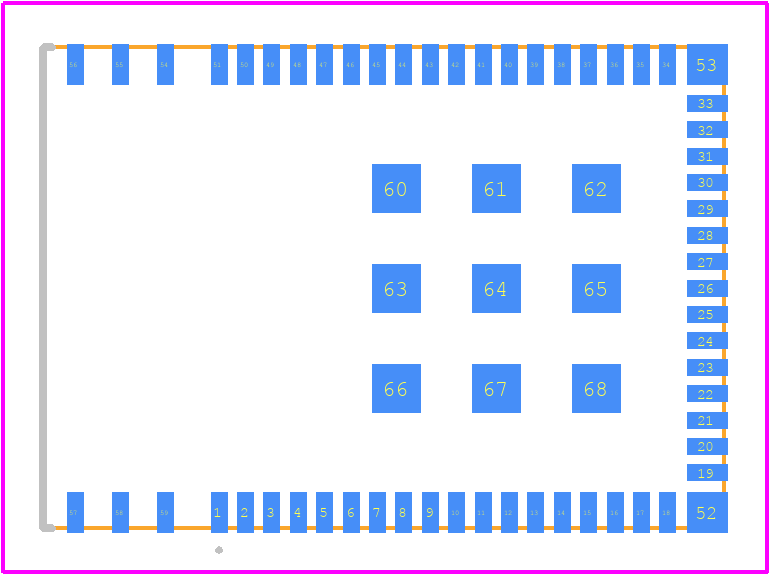

453-00047R - EZURIO PCB footprint - Other - Other - 453-00047R-1
click to zoom
3D Models
453-00047R - EZURIO  - 3D model - Other - 453-00047R-1
click to zoom

453-00047R Details

  • Manufacturer Part Number:

    453-00047R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-68

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Qnity Laird

  • Peak Reflow Temperature (Cel):

    250

  • Telecom IC Type:

    WIRELESS LAN CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    50

453-00047R Frequently Asked Questions (FAQs)

  • The recommended storage condition for 453-00047R is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C (-4°F to 104°F) and relative humidity below 80%.
  • Yes, the 453-00047R is designed to withstand high-vibration environments. However, it's recommended to consult with Laird's application engineers to determine the specific vibration requirements and ensure the product meets those needs.
  • Yes, the 453-00047R is compatible with lead-free soldering processes. Laird's products are designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical lead time for 453-00047R can vary depending on the quantity, region, and availability. It's recommended to check with Laird's sales team or authorized distributors for the most up-to-date lead time information.
  • Yes, Laird offers customization options for the 453-00047R. Engineers can work with Laird's application engineers to modify the product's design, materials, or performance characteristics to meet specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

453-00047R Overview

Use the download button to access the 453-00047R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 453-0, or try a keyword search, such as Network Interfaces
