Technical Content
Part Image

453-00091R - EZURIO

Description: Bluetooth v5.3 Transceiver Module 2.4GHz Integrated, Chip Surface Mount, 1.8V ~ 3.8V, -40°C ~ 105°C

Download 453-00091R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

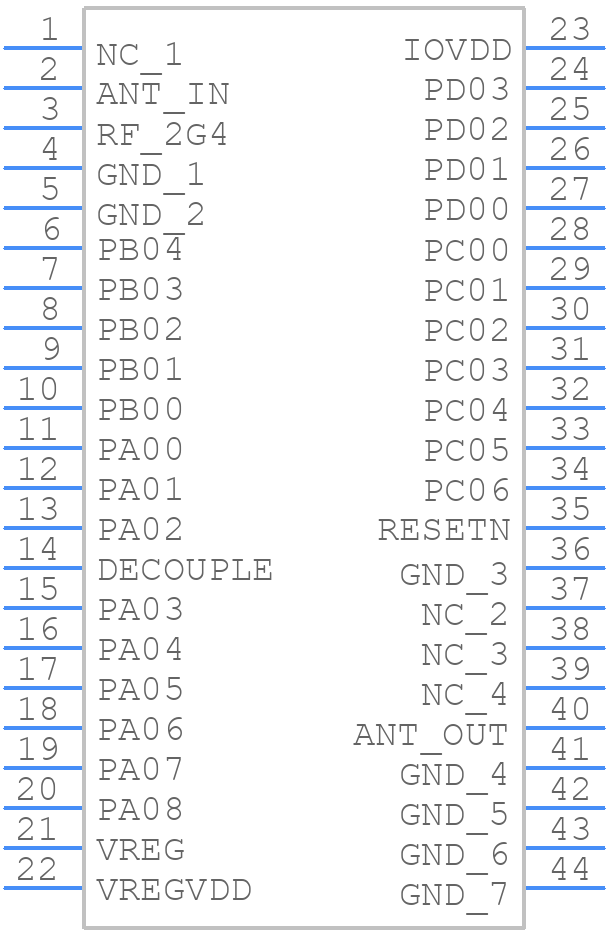

453-00091R - EZURIO - PCB symbol
click to zoom
PCB Footprints
453-00091R - EZURIO PCB footprint - Other - Other - 44-Pin SiP Module
click to zoom
3D Models
453-00091R - EZURIO - 3D model - Other - 44-Pin SiP Module
click to zoom

453-00091R Details

  • Manufacturer Part Number:

    453-00091R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Qnity Laird

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

453-00091R Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 453-00091R is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and relative humidity below 80%.
  • Yes, the 453-00091R is designed to withstand high-vibration environments. However, it's recommended to consult with Laird's application engineers to determine the specific vibration requirements and ensure the product meets those needs.
  • Yes, the 453-00091R is compatible with lead-free soldering processes. Laird recommends following the recommended soldering profile and guidelines to ensure reliable assembly.
  • The typical lead time for the 453-00091R varies depending on the quantity and availability. It's recommended to contact Laird's sales team or authorized distributors for the most up-to-date lead time information.
  • Yes, Laird offers customization options for the 453-00091R. Engineers can work with Laird's application engineers to design and develop custom solutions that meet specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

453-00091R Overview

Use the download button to access the 453-00091R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 453-0, or try a keyword search, such as Fixed Capacitors
