454927-E footprint, schematic symbol and 3D model by TE Connectivity

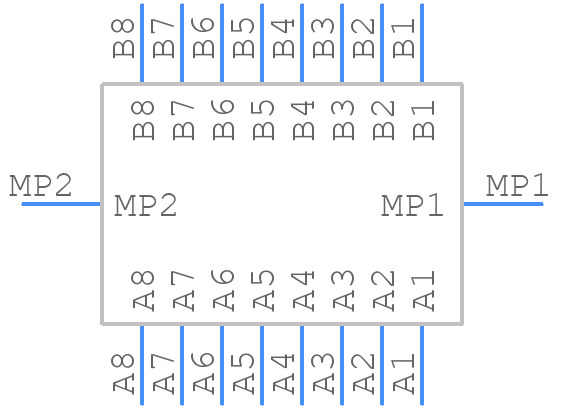

Symbol

click to zoom

PCB Footprints

454927-E - TE Connectivity PCB footprint - Other - Other - 454927-E-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 454927-E
Part Number 454927-E
Manufacturer TE Connectivity
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - 454927-E-2
Released Date Aug 7, 2023
Last Modified Date Dec 15, 2024 11:00 PM UTC
Pinout / Pin List Click Here (Member Only)

454927-E Details

Manufacturer Part Number:
454927-E
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
26 Weeks, 3 Days
Manufacturer:
TE Connectivity
YTEOL:
8.68
Board Mounting Option:
LOCATING POST
Body Depth:
0.189 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mains Connector Rating:
2.33A
Mating Contact Row Spacing:
0.049 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Current (Signal):
2.33 A
Reference Standard:
UL
Terminal Pitch:
0.8 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
16
UL Flammability Code:
94V-0

454927-E Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screws on the 454927-E connector, as specified in the TE Connectivity application notes.
Yes, the 454927-E connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10 G peak acceleration, and 3 axes, as per TE Connectivity's environmental testing standards.
Yes, the 454927-E connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance of 95% RH at 40°C, making it suitable for use in industrial, automotive, and aerospace applications.
The 454927-E connector has a mating cycle life of 500 cycles, as specified in the TE Connectivity datasheet, ensuring reliable connections over an extended period.
Yes, the 454927-E connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors, as well as third-party components, ensuring flexibility in system design and integration.

Trust Checks

Community Provided

System Verified

Community Approved

454927-E Overview

Use the download button to access the 454927-E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 45492, or try a keyword search, such as Headers and Edge Type Connectors
