45586-0005 - Molex

Description: Mini-Fit Jr. Header, Dual Row, Right-Angle, Third Generation Polarization Type for PCIe Applications, 8 Circuits, UL 94V-0, 0.76µm Select Gold (Au) Plating, Black

Download 45586-0005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
45586-0005 - Molex - PCB symbol
click to zoom
PCB Footprints

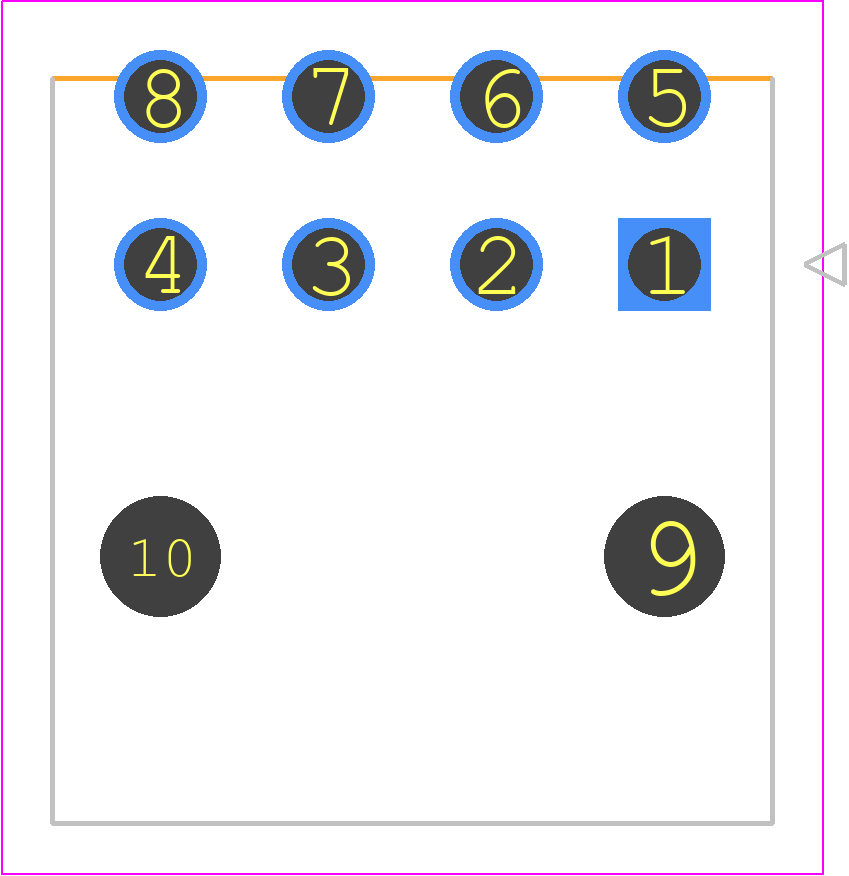

45586-0005 - Molex PCB footprint - Other - Other - 45586-000Y
click to zoom
3D Models
45586-0005 - Molex - 3D model - Other - 45586-000Y
click to zoom

45586-0005 Details

  • Manufacturer Part Number:

    45586-0005

  • Manufacturer:

    Molex

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

45586-0005 Overview

Use the download button to access the 45586-0005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 45586, or try a keyword search, such as Power Connectors
