45711-1000 - Molex

Description: Standard Card Edge Connectors BUS BAR ASSY Vertical Mount

Download 45711-1000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
45711-1000 - Molex - PCB symbol
click to zoom
PCB Footprints

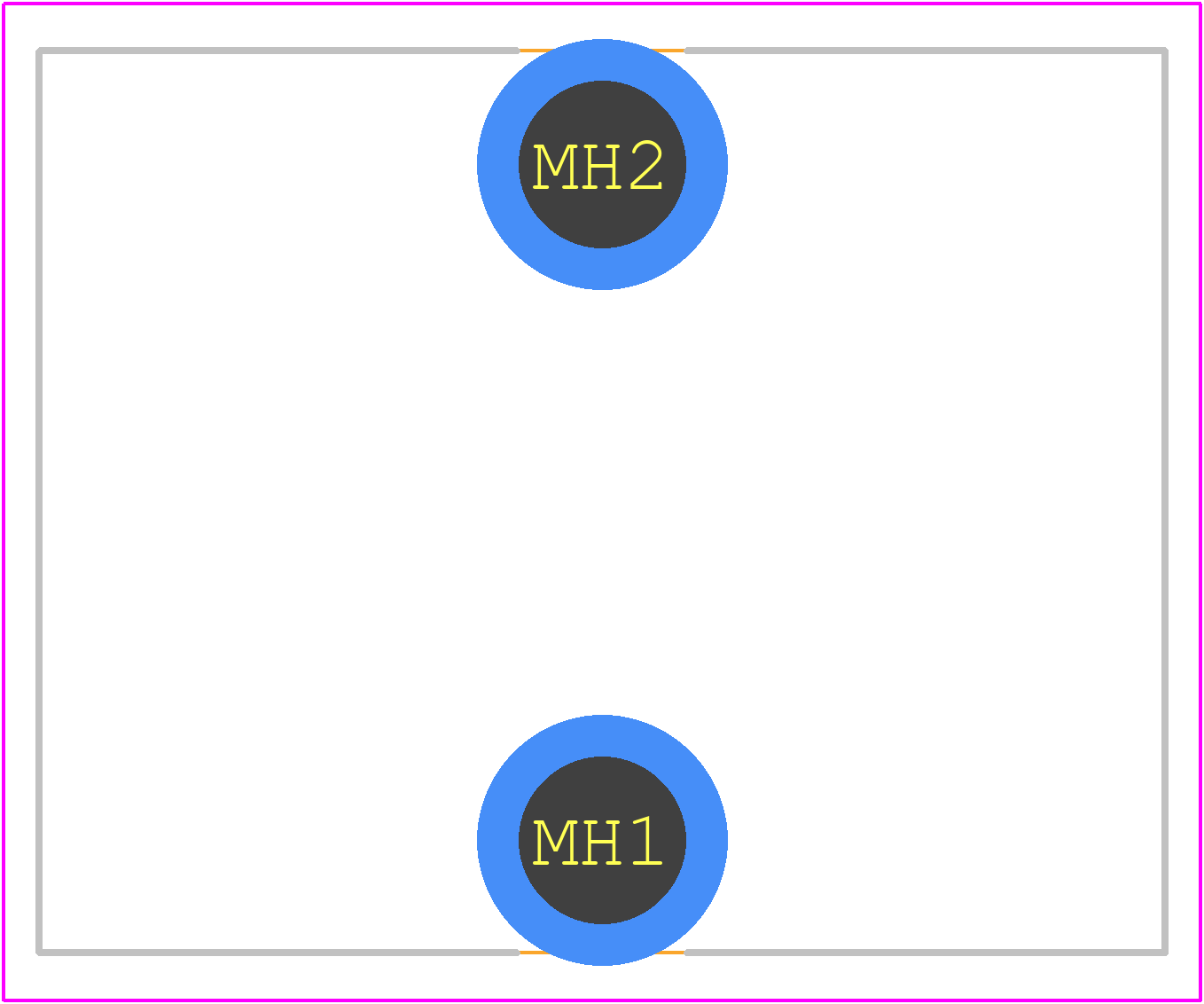

45711-1000 - Molex PCB footprint - Other - Other - 45711-1000-4
click to zoom
3D Models
45711-1000 - Molex - 3D model - Other - 45711-1000-4
click to zoom

45711-1000 Details

  • Manufacturer Part Number:

    45711-1000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    1 inch

  • Body Depth:

    1.482 inch

  • Body Length:

    1.25 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    SCREW

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Plating Thickness:

    30u inch

  • Rated Current (Power):

    300 A

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1

  • UL Flammability Code:

    94V-0

45711-1000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 45711-1000 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the 45711-1000 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels, making it suitable for harsh environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
  • The 45711-1000 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections even in applications where frequent connections and disconnections are required.
  • Yes, the 45711-1000 connector is designed for automated assembly, with features such as pick-and-place compatibility and tape-and-reel packaging, making it suitable for high-volume production.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

45711-1000 Overview

Use the download button to access the 45711-1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 45711, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
