4590R-335K - API Delevan

4590R-335K Frequently Asked Questions (FAQs)

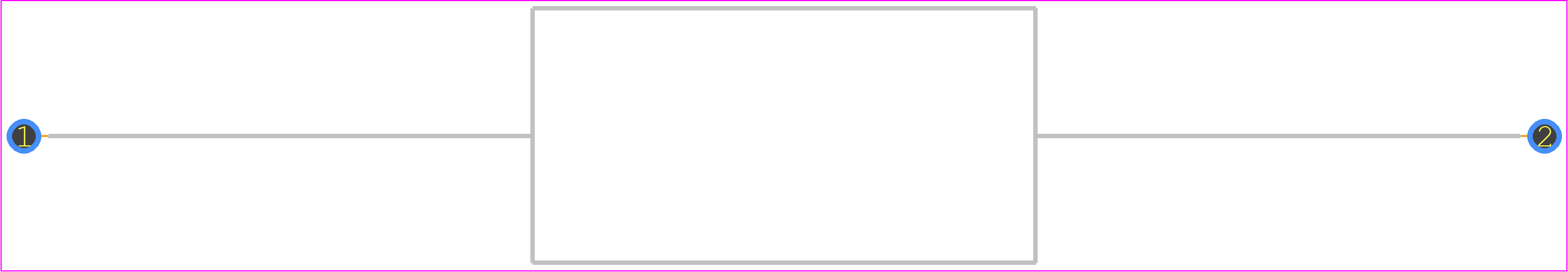

• What is the recommended land pattern for the 4590R-335K?
  The recommended land pattern for the 4590R-335K can be found in the API Delevan application note AN-013, which provides detailed guidelines for PCB layout and footprint design.
• How does the 4590R-335K perform in high-temperature environments?
  While the datasheet specifies an operating temperature range of -40°C to +125°C, API Delevan recommends derating the inductor's current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation in high-temperature environments.
• Can the 4590R-335K be used in high-vibration applications?
  Yes, the 4590R-335K is designed to withstand vibrations up to 10g peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper PCB mounting and secure the inductor to prevent mechanical stress.
• What is the self-resonant frequency (SRF) of the 4590R-335K?
  The SRF of the 4590R-335K is typically around 150 MHz, but this value can vary depending on the specific application and PCB layout. It's recommended to consult with API Delevan's application engineers for more information.
• Is the 4590R-335K compatible with lead-free soldering processes?
  Yes, the 4590R-335K is compatible with lead-free soldering processes, including RoHS and WEEE compliance. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
