4590R-685K Frequently Asked Questions (FAQs)

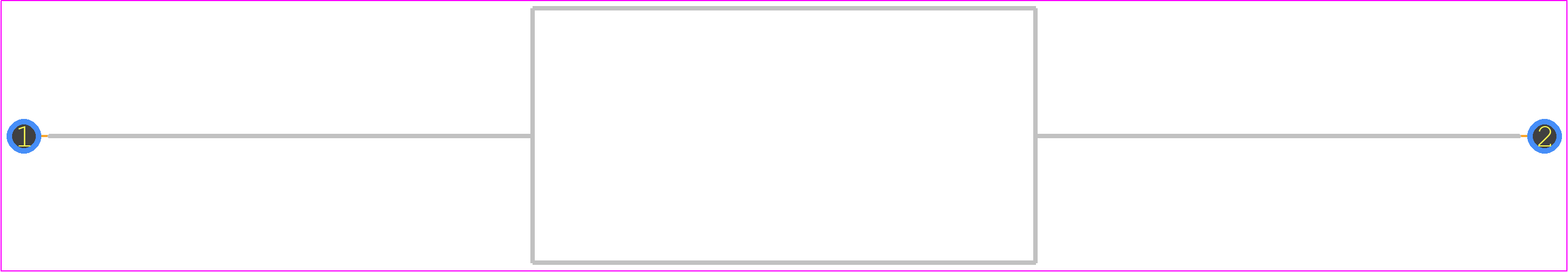

• What is the recommended land pattern for the 4590R-685K?
  The recommended land pattern for the 4590R-685K can be found in the API Delevan application note AN-013, which provides detailed guidelines for PCB layout and land pattern design.
• How does the 4590R-685K perform in high-temperature environments?
  While the datasheet specifies an operating temperature range of -40°C to +125°C, API Delevan recommends derating the inductor's current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation in high-temperature environments.
• Can the 4590R-685K be used in high-vibration applications?
  Yes, the 4590R-685K is designed to withstand vibrations up to 20 G's, making it suitable for use in high-vibration environments. However, it's essential to ensure proper PCB mounting and secure the inductor to prevent mechanical stress.
• What is the self-resonant frequency (SRF) of the 4590R-685K?
  The SRF of the 4590R-685K is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance value and the parasitic capacitance. API Delevan recommends consulting their application engineers for specific SRF calculations.
• Is the 4590R-685K compatible with lead-free soldering processes?
  Yes, the 4590R-685K is lead-free and RoHS-compliant, making it suitable for use in lead-free soldering processes. However, it's essential to follow the recommended soldering profile to ensure reliable assembly.
