45984-0322 - Molex

Description: 1.27mm Pitch, EXTreme LPHPower Receptacle Header with Pegs, Right-Angle, 16 Signal Contacts, Select Gold (Au) Plating, for 2.36mm Thick PC Board

Download 45984-0322 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
45984-0322 - Molex - PCB symbol
click to zoom
PCB Footprints

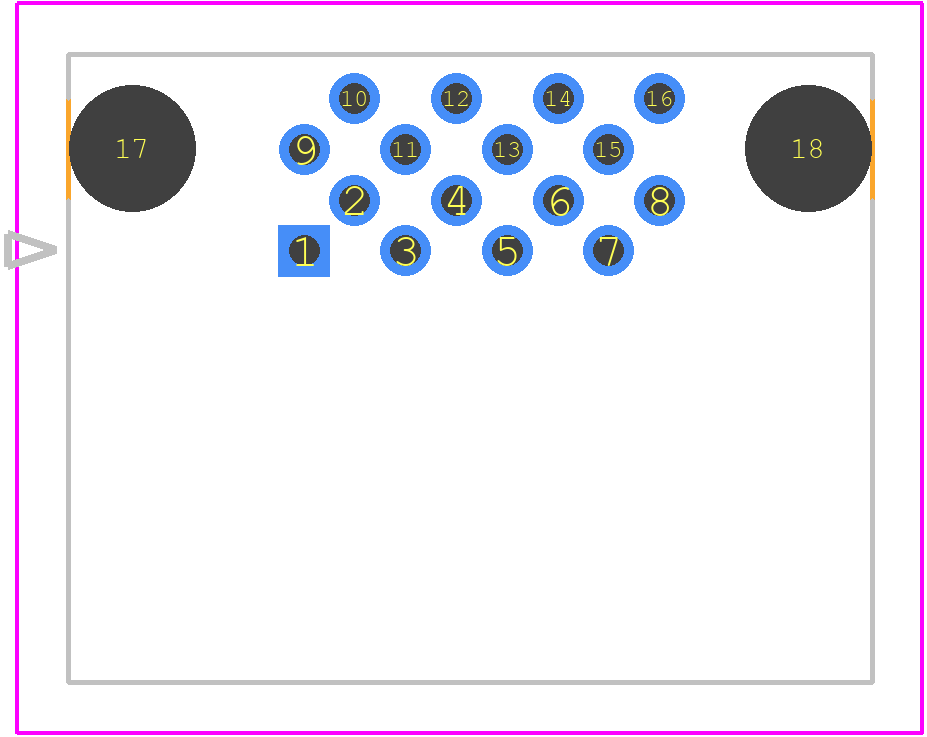

45984-0322 - Molex PCB footprint - Other - Other - 45984-0321
click to zoom
3D Models
45984-0322 - Molex - 3D model - Other - 45984-0321
click to zoom

45984-0322 Details

  • Manufacturer Part Number:

    45984-0322

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.618 inch

  • Body Length:

    0.791 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.245 mm

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

45984-0322 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 45984-0322 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 45984-0322 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 45984-0322 connector. However, you should verify the wire size compatibility and ensure the connector's performance and reliability are not compromised. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • The 45984-0322 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, or lifespan.
