45984-0343 - Molex

Description: 1.27mm Pitch, EXTreme LPHPower Receptacle Header with Pegs, Right-Angle, 24 Signal Contacts, Select Gold (Au) Plating, for 1.57mm Thick PC Board

Download 45984-0343 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
45984-0343 - Molex - PCB symbol
click to zoom
PCB Footprints

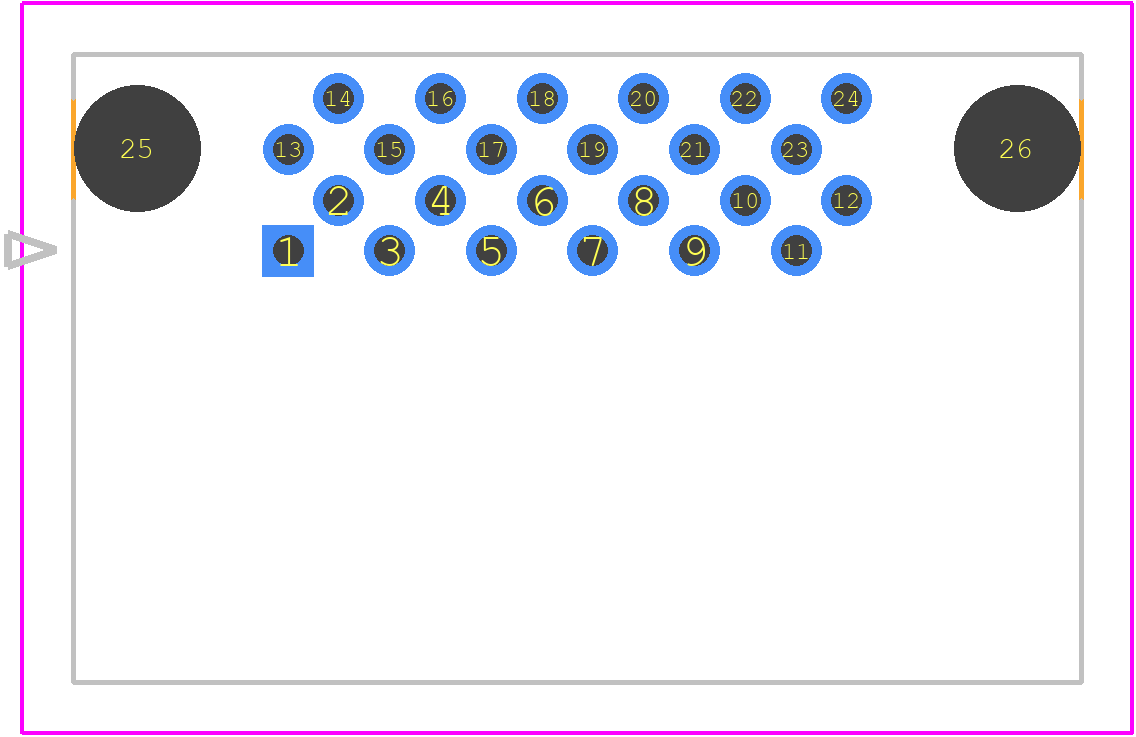

45984-0343 - Molex PCB footprint - Other - Other - 45984-0341
click to zoom
3D Models
45984-0343 - Molex - 3D model - Other - 45984-0341
click to zoom

45984-0343 Details

  • Manufacturer Part Number:

    45984-0343

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.618 inch

  • Body Length:

    0.992 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.245 mm

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

45984-0343 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 45984-0343 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 45984-0343 connector has a IP67 rating, which means it can withstand temporary immersion in water and is suitable for outdoor use. However, it's essential to ensure proper sealing and protection from environmental factors like UV, salt, and extreme temperatures.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 45984-0343 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the electrical and mechanical stresses of the application.
  • Yes, it's essential to follow proper PCB layout guidelines for the 45984-0343 connector to ensure reliable connections and prevent damage. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and using a solder mask to prevent solder bridging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

45984-0343 Overview

Use the download button to access the 45984-0343 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 45984, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
