45984-8142 - Molex

45984-8142 Details

• Manufacturer Part Number:

  45984-8142

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  21 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7

• Board Mounting Option:

  PEG

• Body Breadth:

  0.295 inch

• Body Depth:

  0.732 inch

• Body Length:

  2.642 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Arrangement:

  S24P8

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  HYBRID

• Dielectric Withstanding Voltage:

  1500VDC V

• Durability:

  250 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  1.0564 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.05 inch

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

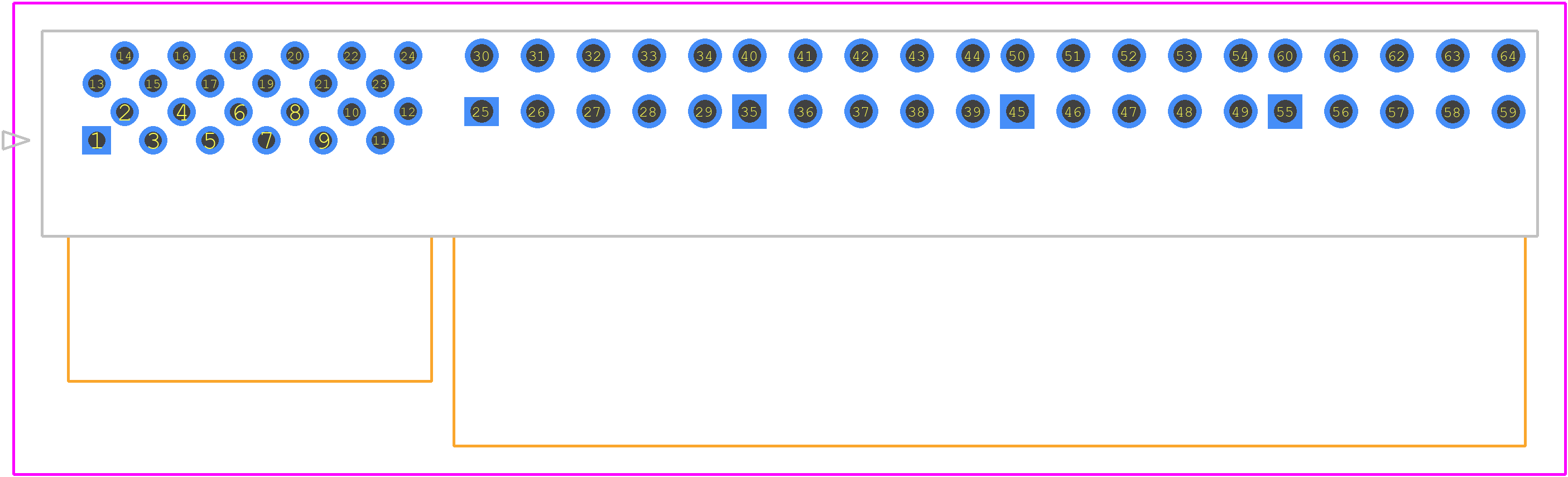

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.27 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.142 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  32

• Withdrawl Force-Min:

  .139 N
