45985-0452 - Molex

Description: EXTreme LPHPower Plug with Guides and Pegs, Right-Angle, 28 Signal Contacts, Select Gold (Au) Plating, for 2.36mm Thick PC Board

Download 45985-0452 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

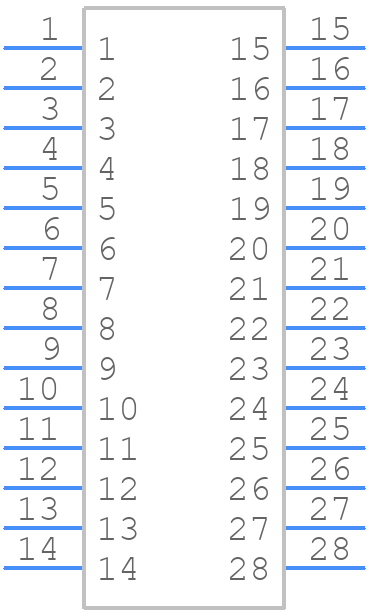

Symbol
45985-0452 - Molex - PCB symbol
click to zoom

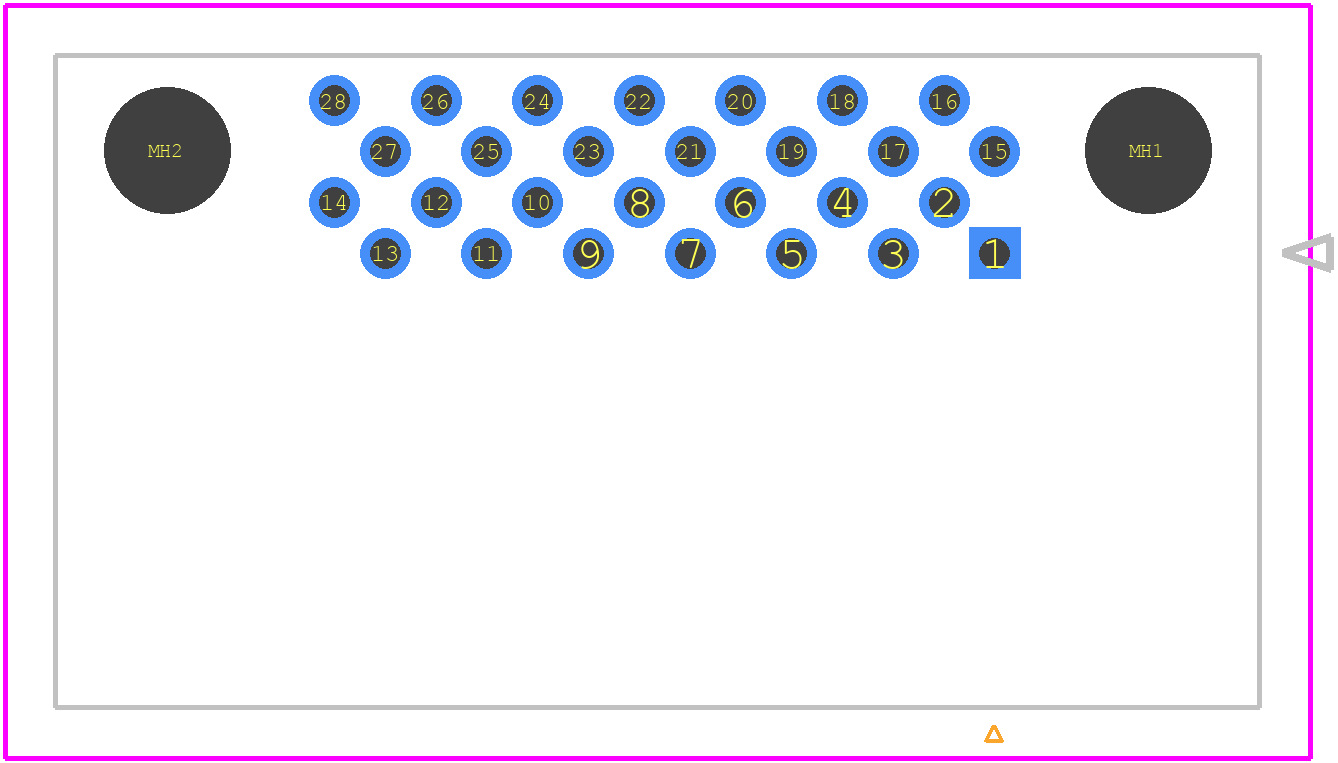

PCB Footprints
45985-0452 - Molex PCB footprint - Other - Other - 45985-0451-2
click to zoom
3D Models
45985-0452 - Molex - 3D model - Other - 45985-0451-2
click to zoom

45985-0452 Details

  • Manufacturer Part Number:

    45985-0452

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.15

  • Additional Feature:

    EXTREME LPHPOWER, POLARIZED, SHROUDED

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.64 inch

  • Body Length:

    0.889 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    CENTRONIC

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.27 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    28

  • UL Flammability Code:

    94V-0

45985-0452 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
  • Yes, the 45985-0452 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance. However, it's crucial to follow proper mounting and installation procedures to ensure the connector's reliability in such applications.
  • The 45985-0452 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor use or exposure to harsh environmental conditions. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet specifies 24 AWG wire, the 45985-0452 connector can accommodate wire sizes between 22 AWG and 26 AWG. However, using wire sizes outside this range may affect the connector's performance and reliability. It's recommended to consult with a Molex representative or a qualified engineer to ensure the connector's compatibility with your specific wire size requirements.
  • The 45985-0452 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, and lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

45985-0452 Overview

Use the download button to access the 45985-0452 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 45985, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
