45985-4142 - Molex

Description: Heavy Duty Power Connectors LPH Plug Assy RtAn 0 04 Pwr 24 Sig Medium

Download 45985-4142 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

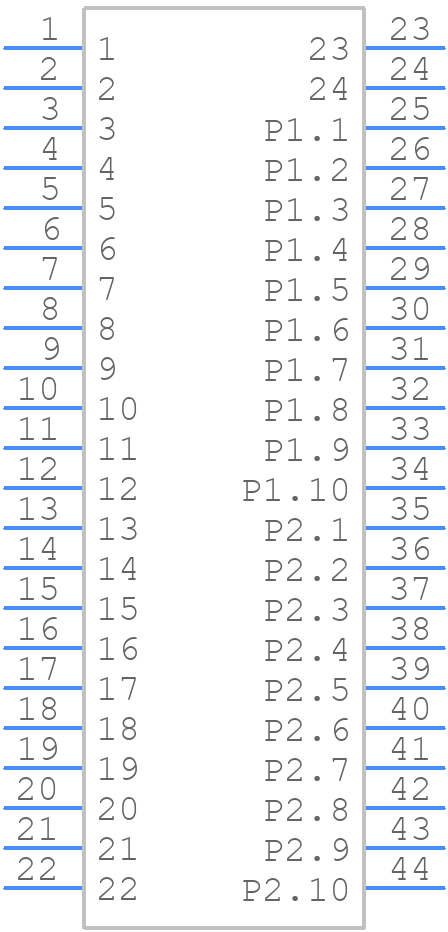

45985-4142 - Molex - PCB symbol
click to zoom
PCB Footprints

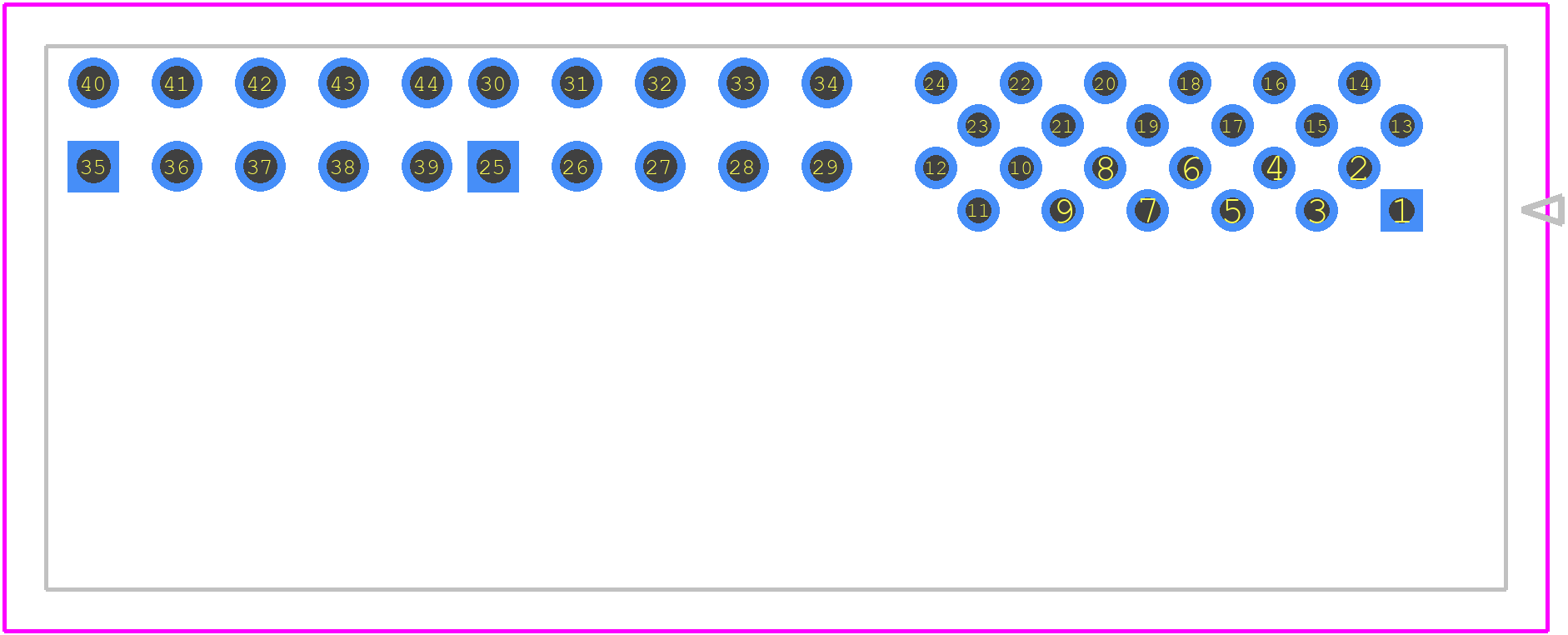

45985-4142 - Molex PCB footprint - Other - Other - 45985-4141
click to zoom
3D Models
45985-4142 - Molex - 3D model - Other - 45985-4141
click to zoom

45985-4142 Details

  • Manufacturer Part Number:

    45985-4142

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.64 inch

  • Body Length:

    1.724 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S24P4

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    HYBRID

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    28

45985-4142 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 45985-4142 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 45985-4142 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and plating may not be suitable for extreme environmental conditions, such as high temperatures, salt spray, or UV exposure.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 45985-4142 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the connector's current rating. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • To ensure reliable connections and prevent contact damage, follow proper termination and installation procedures. Ensure the wire is stripped to the correct length, and the terminal screws are tightened to the recommended torque. Avoid over-tightening, which can damage the contacts or terminal screws.
