45985-4231 - Molex

Description: EXTreme LPHPower Header, Right-Angle, 4 Power Contacts, 20 Signal Contacts, Select Gold (Au) Plating, for 3.18mm Thick PC Board, with Guide Pockets

Download 45985-4231 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

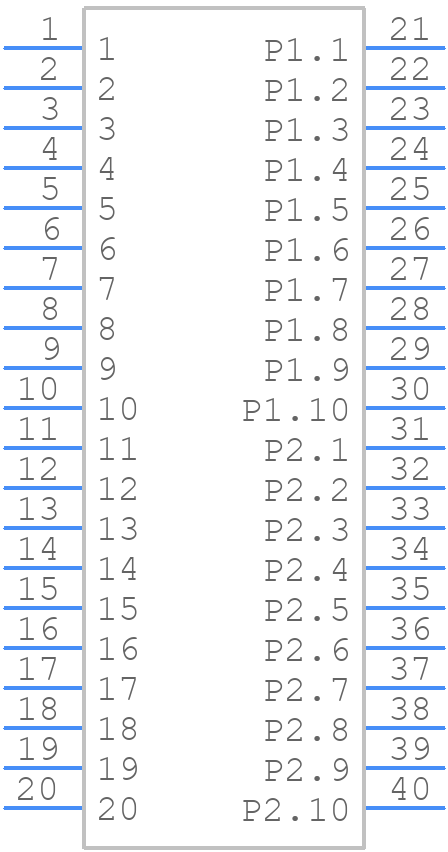

Symbol
45985-4231 - Molex - PCB symbol
click to zoom

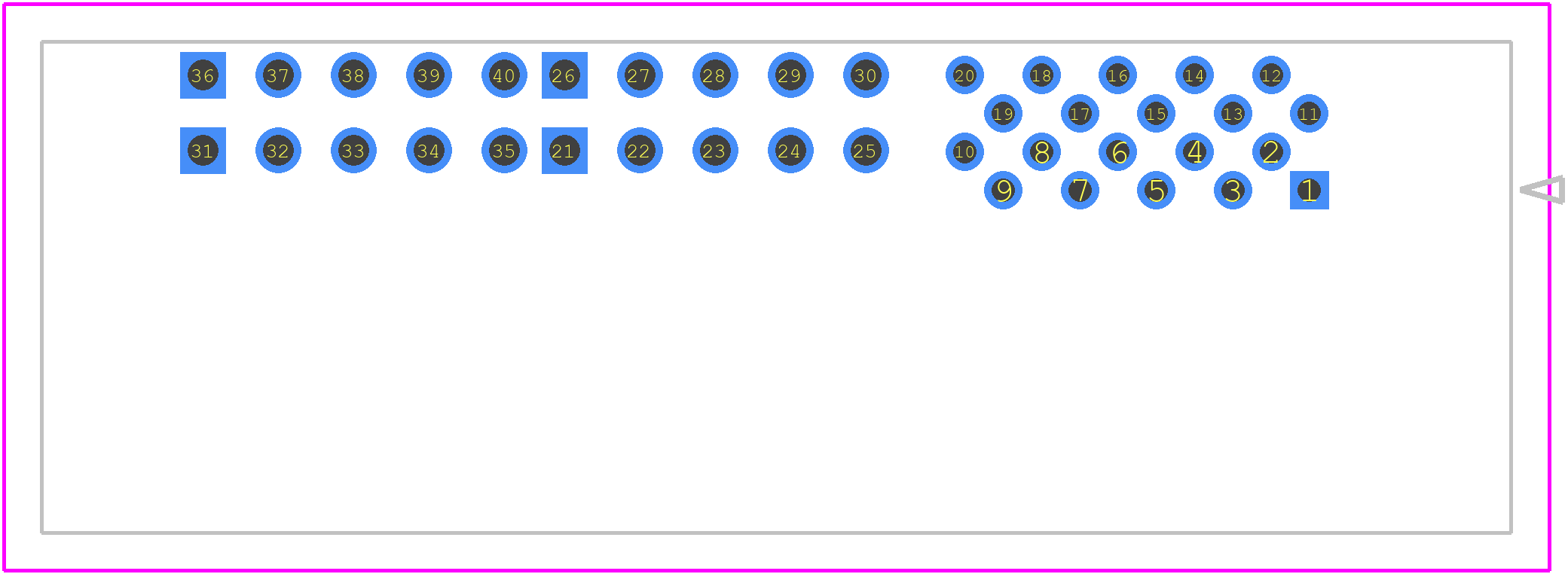

PCB Footprints
45985-4231 - Molex PCB footprint - Other - Other - 45985-4231
click to zoom
3D Models
45985-4231 - Molex - 3D model - Other - 45985-4231
click to zoom

45985-4231 Details

  • Manufacturer Part Number:

    45985-4231

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Molex

  • Body Breadth:

    0.295 inch

  • Body Depth:

    0.64 inch

  • Body Length:

    1.624 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S20P4

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    CENTRONIC

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

45985-4231 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 45985-4231 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 45985-4231 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for harsh environmental conditions, such as direct exposure to water, high humidity, or extreme temperatures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • Yes, to ensure reliable operation and prevent damage to the connector, it's essential to follow Molex's recommended PCB layout guidelines, including keeping the PCB traces away from the connector's mounting holes and ensuring proper clearance around the connector's body.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

45985-4231 Overview

Use the download button to access the 45985-4231 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 45985, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
