46014-0504 - Molex

Description: Mini-Fit Plus Header, 4.20mm Pitch, Single Row, Vertical, 4 Circuits, with Snap-in Plastic Peg PCB Lock, PA Polyamide Nylon 6/6

Download 46014-0504 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46014-0504 - Molex - PCB symbol
click to zoom
PCB Footprints

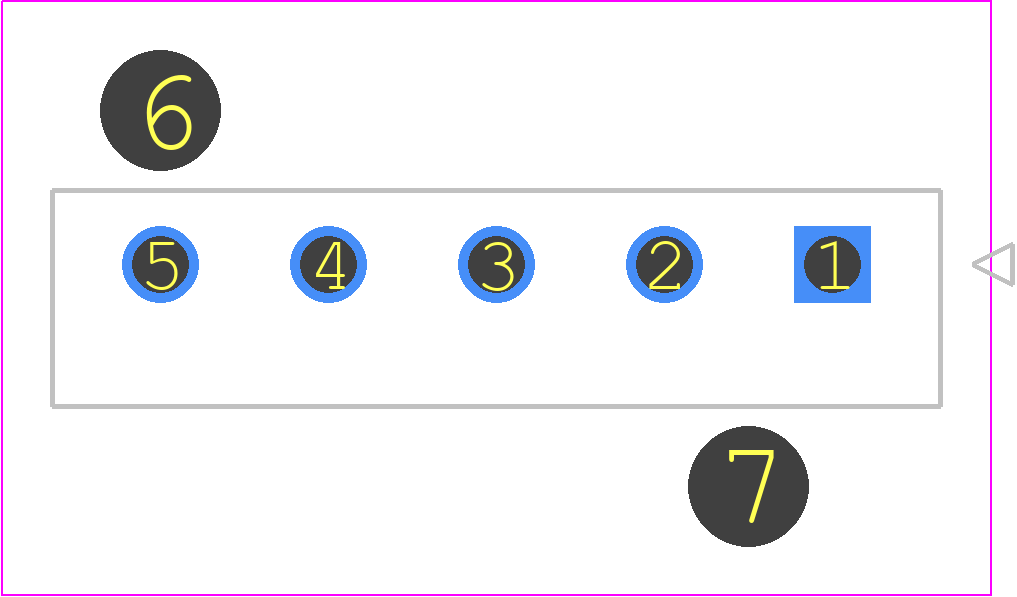

46014-0504 - Molex PCB footprint - Other - Other - 46014-05YY_1
click to zoom
3D Models
46014-0504 - Molex - 3D model - Other - 46014-05YY_1
click to zoom

46014-0504 Details

  • Manufacturer Part Number:

    46014-0504

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT (POWER): 12.5A

  • Body Breadth:

    0.37 inch

  • Body Depth:

    0.504 inch

  • Body Length:

    0.874 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE 6/6

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

46014-0504 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 46014-0504 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • Yes, the 46014-0504 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and can withstand humid environments, making it suitable for use in harsh industrial or outdoor applications.
  • The 46014-0504 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 46014-0504 connector is designed for automated assembly processes, such as pick-and-place machines, making it suitable for high-volume production applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46014-0504 Overview

Use the download button to access the 46014-0504 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46014, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
