46015-1007 - Molex

Description: Mini-Fit Plus Header, Dual Row, Vertical, 10 Circuits, with Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6, UL 94V-0

Download 46015-1007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46015-1007 - Molex - PCB symbol
click to zoom
PCB Footprints

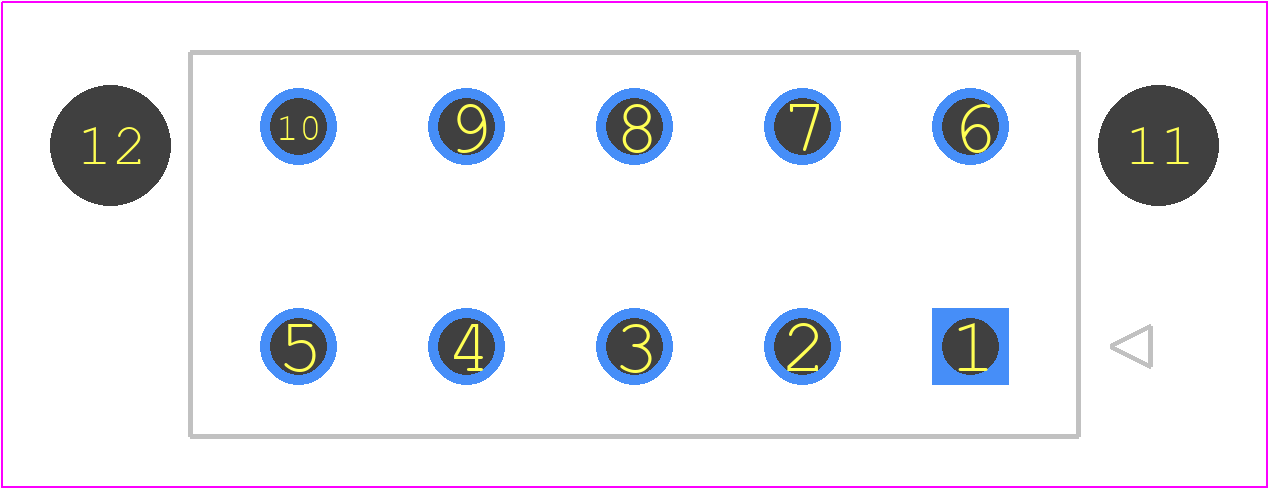

46015-1007 - Molex PCB footprint - Other - Other - 46015-10(03,07,09)
click to zoom
3D Models
46015-1007 - Molex - 3D model - Other - 46015-10(03,07,09)
click to zoom

46015-1007 Details

  • Manufacturer Part Number:

    46015-1007

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.3

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P10

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    100 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

46015-1007 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 46015-1007 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 46015-1007 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor or harsh environmental use. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
  • While the datasheet specifies 18 AWG wire, the connector can accommodate wire sizes between 16 AWG and 20 AWG. However, using wire sizes outside this range may affect the connector's performance and reliability.
  • The 46015-1007 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, or lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46015-1007 Overview

Use the download button to access the 46015-1007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46015, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
