Technical Content
Part Image

46015-2012 - Molex

Description: Mini-Fit Plus Header, Dual Row, Vertical, 20 Circuits, without Snap-in Plastic Peg PCB Lock, without Drain Holes, PA Polyamide Nylon 6/6

Download 46015-2012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
46015-2012 - Molex - PCB symbol
click to zoom
PCB Footprints

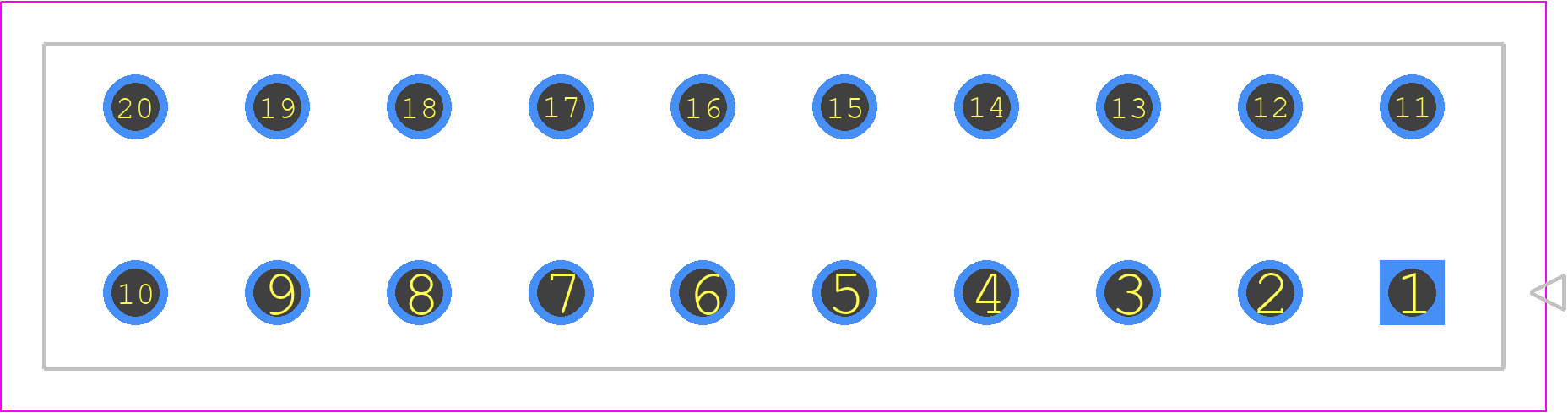

46015-2012 - Molex PCB footprint - Other - Other - 46015-20(02,06,12)
click to zoom
3D Models
46015-2012 - Molex - 3D model - Other - 46015-20(02,06,12)
click to zoom

46015-2012 Details

  • Manufacturer Part Number:

    46015-2012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    37 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.3

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P20

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Durability:

    250 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

46015-2012 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 46015-2012 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
  • The maximum operating temperature for the 46015-2012 connector is 125°C (257°F). However, it's essential to consult the datasheet and relevant application notes for specific temperature ratings and derating guidelines.
  • Yes, the 46015-2012 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into high-volume manufacturing lines.
  • The recommended torque specification for the 46015-2012 connector's screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). It's essential to follow the recommended torque specification to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

46015-2012 Overview

Use the download button to access the 46015-2012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 46015, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
