Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The 4608X-102-106LF has a high power rating, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the component within its operating temperature range.
Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow this profile to prevent damage to the component.
While the 4608X-102-106LF is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Consider using additional mechanical support, such as potting or conformal coating, to ensure reliability.
To troubleshoot issues, start by checking the component's datasheet and application notes. Verify the PCB layout, soldering quality, and thermal management. Use diagnostic tools, such as oscilloscopes and thermal imaging cameras, to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4608X-102-106LF Overview

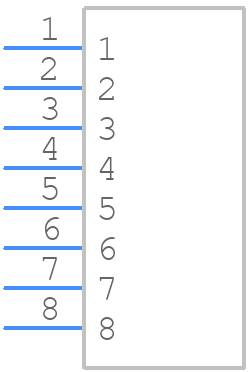

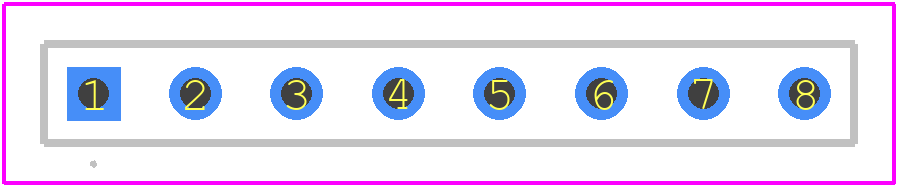

Use the download button to access the 4608X-102-106LF schematic symbol, PCB footprint, and 3D model.
