4610X-102-102LF - Bourns

Description: Bourns Isolated Resistor Array 1kΩ ±2% 5 Resistors, 1.25W Total, SIP package 4600X Through Hole

Download 4610X-102-102LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4610X-102-102LF - Bourns - PCB symbol
click to zoom
PCB Footprints

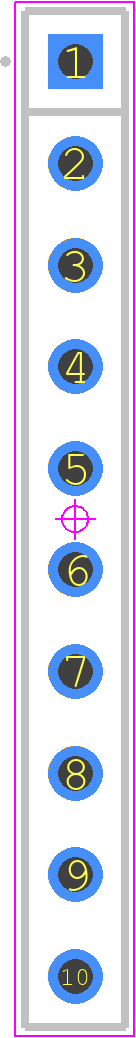

4610X-102-102LF - Bourns PCB footprint - Other - Other - 4610X-101-103LF
click to zoom

4610X-102-102LF Details

  • Manufacturer Part Number:

    4610X-102-102LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Epoxy Resin

  • Element Power Dissipation:

    0.3 W

  • First Element Resistance:

    1000 Ω

  • JESD-609 Code:

    e1

  • Lead Length:

    3.3 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    5

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    8.89 mm

  • Package Length:

    25.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SIP

  • Package Width:

    2.49 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    1.25 W

  • Rated Temperature:

    70 °C

  • Resistance:

    1000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4610X-102-102LF Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper pours or EMI shields, to contain the magnetic field.
  • While the datasheet specifies a maximum rated voltage, it's essential to consider voltage stress during transient events. Bourns recommends derating the voltage by 20% to ensure reliable operation.
  • The SRF is typically not specified in the datasheet. You can estimate the SRF using the inductor's inductance and capacitance values. A higher SRF can affect the inductor's impedance and overall circuit performance.
  • The 4610X-102-102LF has a maximum operating temperature of 125°C. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to maintain a safe operating temperature.
