46113-0201 - Molex

46113-0201 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 46113-0201 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environment applications?
  The 46113-0201 connector has a plastic housing and is not specifically designed for outdoor or harsh environment applications. It's recommended to use connectors with specialized coatings or materials, such as IP67 or IP69K rated connectors, for outdoor or harsh environment applications.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the suitability of using alternative wire sizes.

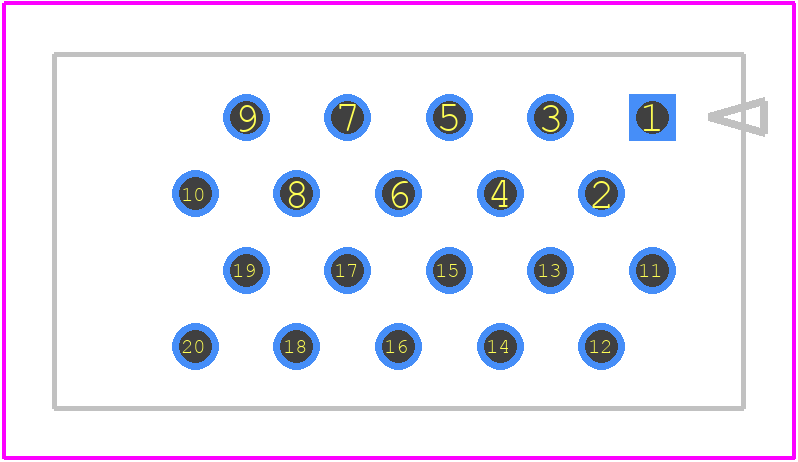

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. Molex provides PCB layout recommendations in their documentation, including guidelines for pad size, spacing, and orientation.
